Fingerprint And RFID Card Access Control Reader Support Password And BT TUYA APP
Keypad: White Backlit, Numeric Keys 0-9, Function Keys , #, Bell

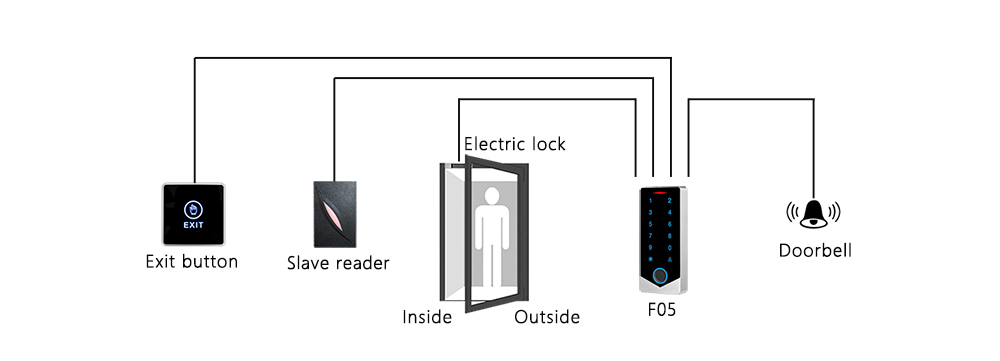

Access Control Interface: Electric Lock, Exit Button, Alarm, Doorbell, Door Sensor
Wiegand Format: Wiegand26/34 Input & Output
Reading Distance: 3-6CM
Operate Temperature:-35℃-60℃
Built-in Card Reader: Standard ID Card, Optional IC Card
Verification Mode: Card, PIN, Card + PIN, WiFi(optional)
Fingerprint and RFID Card Access Control Reader Support Password and BT TUYA APP. Simple Biometric Fingerprint and RFID Card Access Control System
Access Control Reader F05 Features:
♦ Standalone access control terminal, interface for door lock, exit button
♦ Can be used as slave reader, connect with third party access controller through WG26/34
♦ Can work as master and connect with wiegand slave reader
♦ Default is ID card, optional IC/ID card, NFC, 2000 cards capacity and 100 fingerprints
♦ Can set Public password independently or personal password of 4-6 digits
♦ Can set management card, to add or delete users cards and fingerprint
♦ Easy to delete the card if the card is lost, to enhance security level
♦ Enrolling user, deleting user and accessing control parameter settings by keypad easily

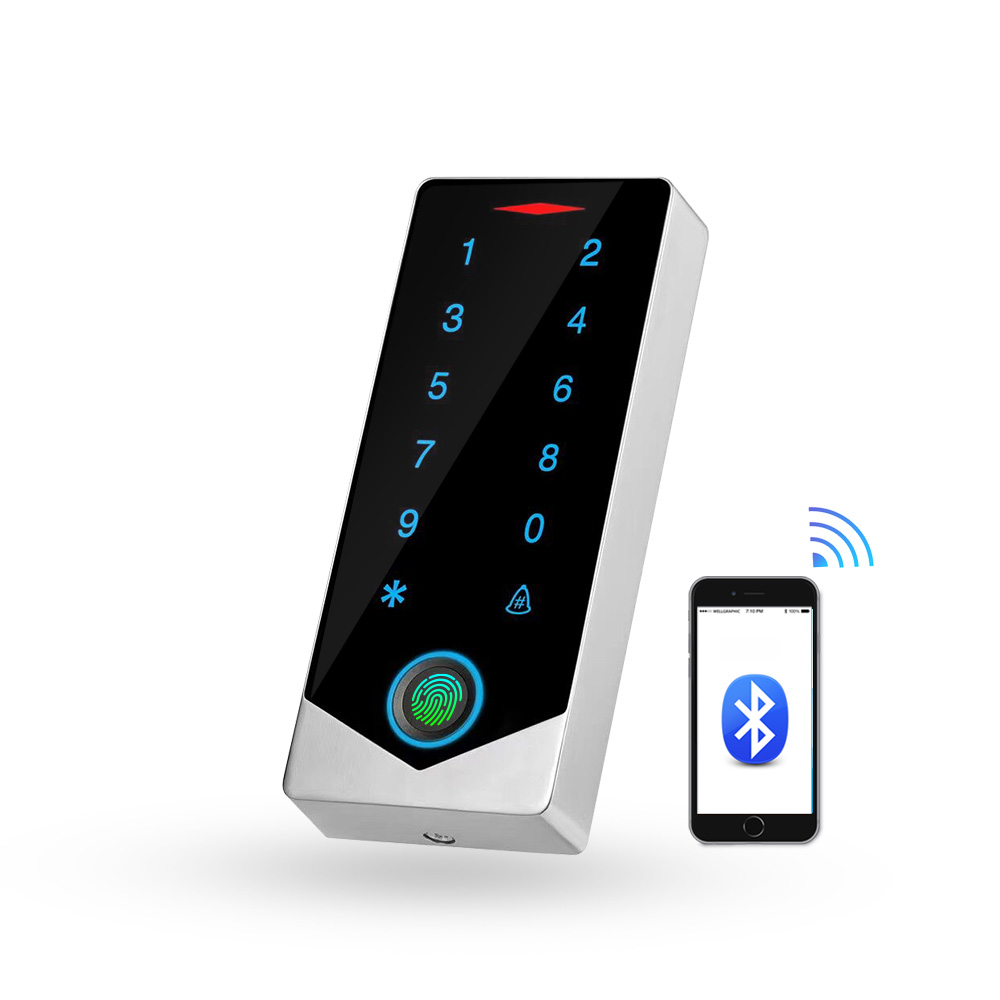

♦ Can open the door by Mobile APP (optional)
♦ User data can be imported into another machine by Wiegand connection
♦ Automatic card adding, easy to add multiple cards
Specification
Parameters Of RFID Card Access Control F05:
| Model | F05 |
| Verification Mode | Card, Fingerprint, Password, Mobile APP (optional) |
| Card reading distance | 3~9cm |
| Card Capacity | 2,000 |
| Fingerprint Capacity | 100 |
| Electric lock output | ≤ 2A |
| Alarm Output | ≤ 1A |
| Opening hours | 0~99 seconds adjustable, (factory default is 5 seconds) |
| Ambient temperature | -40℃ ~ 60℃ |
| Operating Voltage | DC12V |
| Stand-by current | ≤ 30mA |
| Waterproof level | IP65 |
| Dimensions | 132x56x21mm |
Additional Models
| Model | Item Description |
| F05/ID | Fingerprint and ID Card Access Control System Reader |
| F05/IC | Fingerprint and IC Card Access Control System Reader |
| F05/ID/TUYA | Fingerprint and ID Card Access Control System Reader Support TUYA APP |
| F05/IC/TUYA | Fingerprint and IC Card Access Control System Reader Support TUYA APP |
FAQ
1. Q: Do you have any MOQ limit?
A: For your convenience, we can accept 1 pc. But we offer better price for big order.
2. Q: What if the products have problems?
A: We offer a 1-year warranty except for the man-made damage. And we can offer any technical support for operation problems.
3. Q: Can the device’s language be in other languages?
A: Yes, of course. Multi-language can be customized. Our device supports English, Spanish, Portugal, Russian, Arabic, French, German, etc.
4. Q: What about the Payment?
A: You can pay for the order via T/T, Western Union, PayPal, Alibaba payment, L/C, DP
5. Q: How do you ship the goods?
A: Small order: Express like DHL, UPS, TNT, FedEx Big order: By Sea or by airline.
6. Q: How can I get a sample to check your quality?
A: You can require samples to check our quality. You should pay for the sample and freight cost, if you order more than 500 pcs, we return the sample cost to you.
7. Q: What about the lead time for mass production?
A: small order: 1 week after payment Big order: 2-3 weeks.
8. Q： Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required
9. Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us, in your
