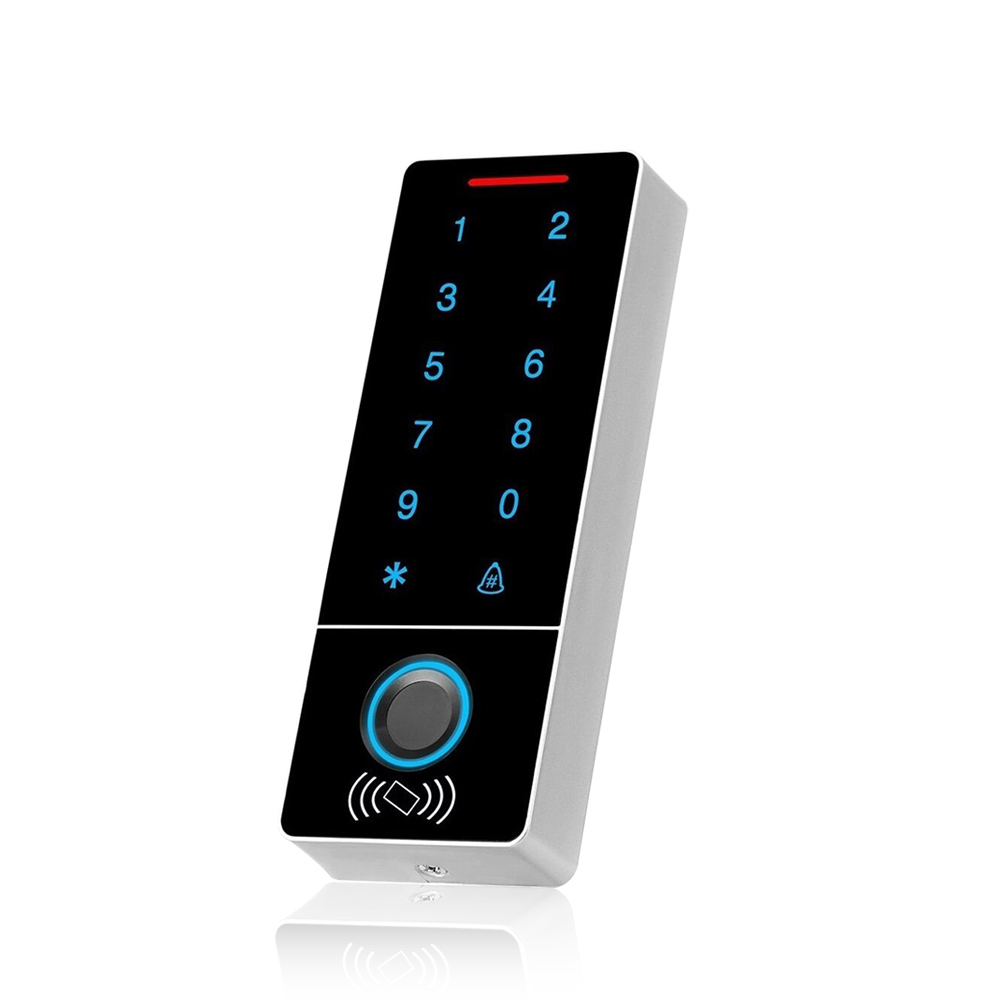

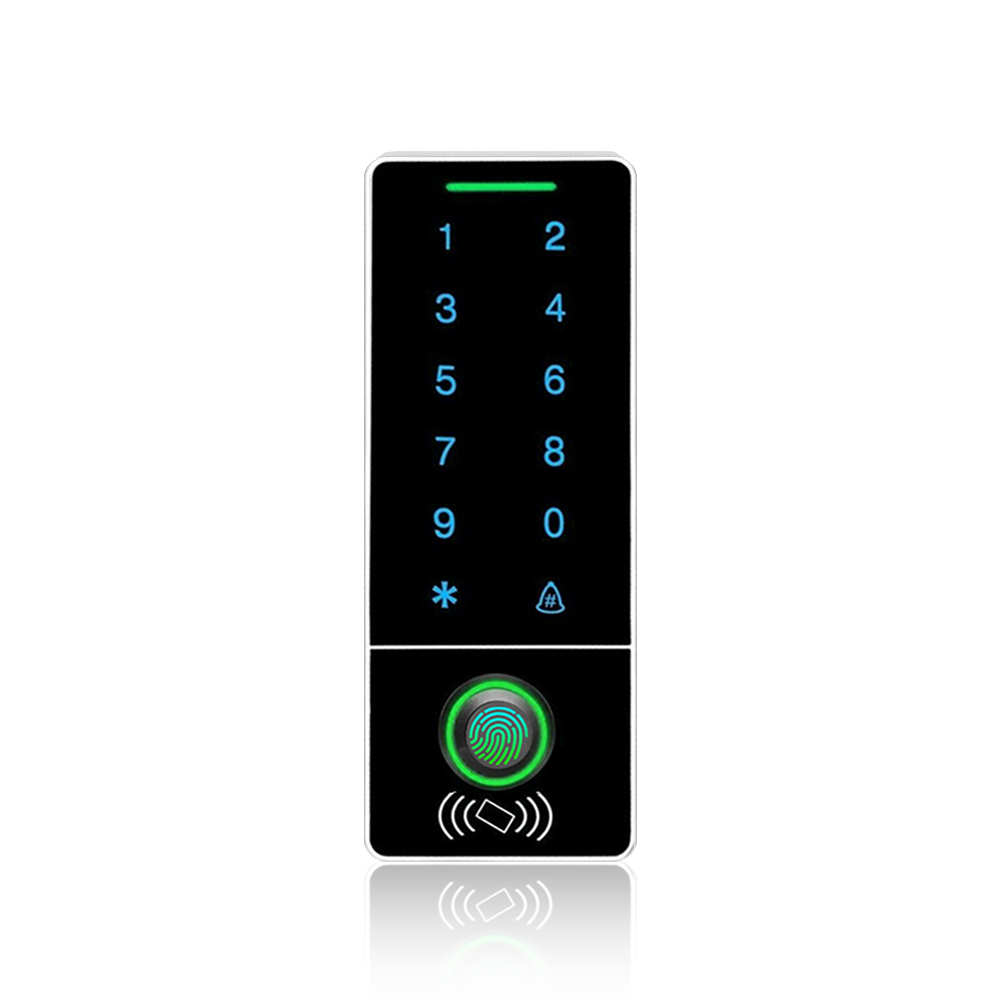

Fingerprint and RFID Card Access Control Reader Support Password Waterproof IP65
Special Features: Access Control System
Network: Standalone
Application: Indoor Or Outside With Shell
Verification Model: FPS, Card, PIN
Fingerprint Capacity: 2,000Cards
Opening Hours: 0~99 Seconds Adjustable,(factory Default Is 5 Seconds)
Card Reading Distance: 3~9cm

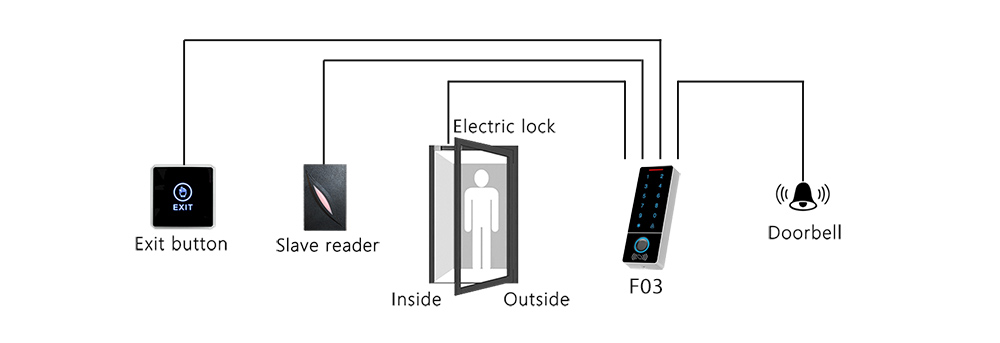

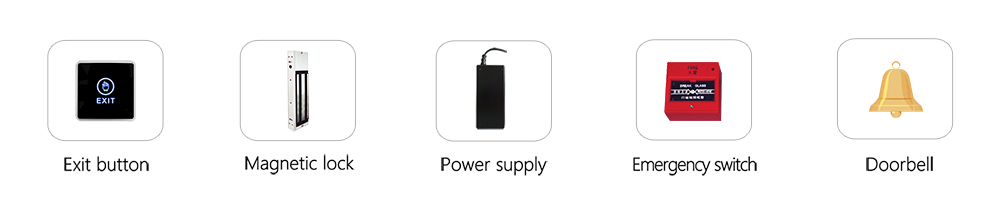

Access Control Interface: Electric Lock, Door Sensor, Alarm, Exit Button, Door Bell
Waterproof Level: IP65
Operating Voltage: DC12V
Fingerprint and RFID Card Access Control Reader Support Password Waterproof IP65. Simple Biometric Fingerprint and RFID Card Access Control System
Access Control System F03 Features:
♦ Standalone access control terminal, interface for door lock, exit button
♦ Can be used as slave reader, connect with third party access controller through WG26/34
♦ Can work as master and connect with wiegand slave reader
♦ Default is ID card, optional IC card, 2000 cards capacity and 100 fingerprints
♦ Can set Public password independently or personal password of 4-6 digits
♦ Can set management card, to add or delete users cards and fingerprint
♦ Easy to delete the card if the card is lost, to enhance security level
♦ Enrolling user, deleting user and accessing control parameter settings by keypad easily

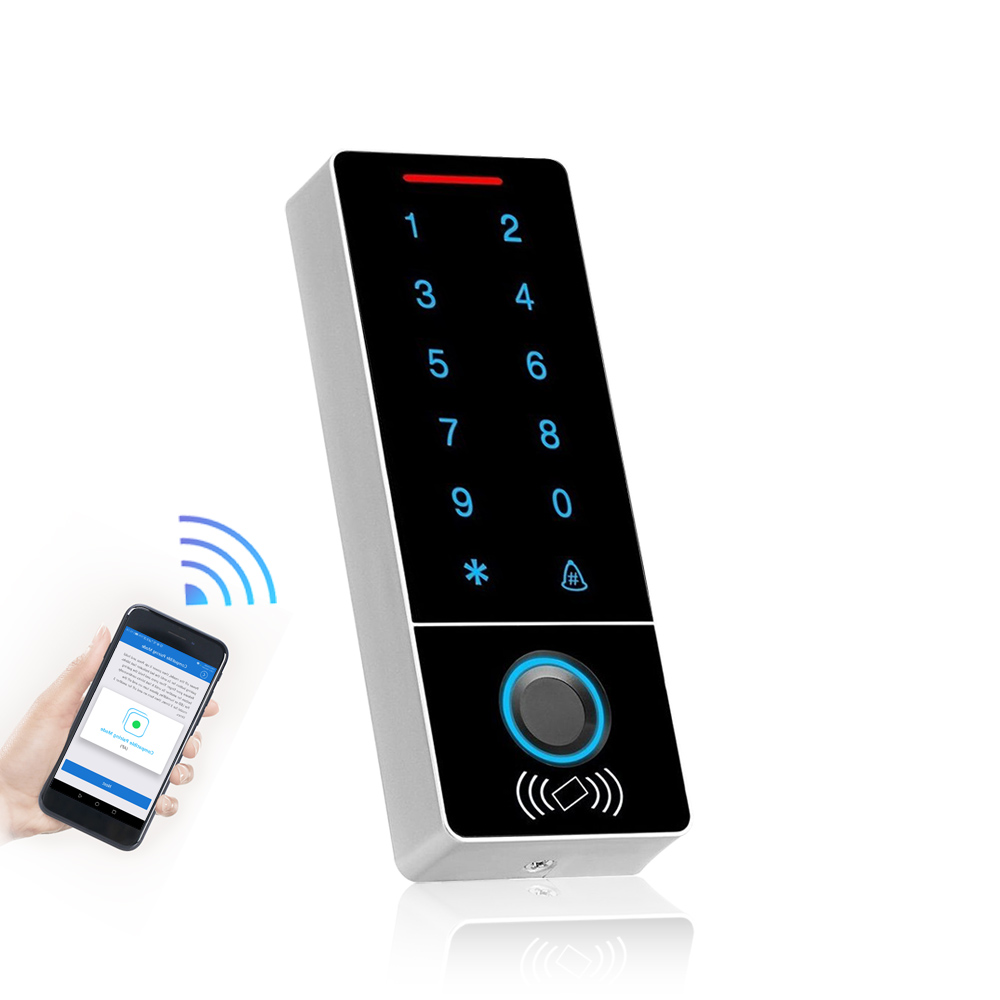

♦ Can open the door by Mobile APP (optional)
♦ User data can be imported into another machine by Wiegand connection
♦ A2tomatic card adding, easy to add multiple cards
Specification
Parameters Of RFID Card Access Control F03:
| Model | F03 |
| Verification Mode | Fingerprint, Card, Password, Remote control (optional) |
| Card reading distance | 3~9cm |
| Capacity | 2,000 cards, 100 fingerprints |
| Electric lock output | ≤ 2A |
| Alarm Output | ≤ 1A |
| Opening hours | 0~99 seconds adjustable, (factory default is 5 seconds) |
| Ambient temperature | -40℃ ~ 60℃ |
| Operating Voltage | DC12V |
| Stand-by current | ≤ 30mA |
| Waterproof level | IP65（optional） |
| Dimensions | 132x50x21mm |
Additional Models
| Model | Item Description |
| F03/ID | Fingerprint and ID Card Access Control System Reader |
| F03/IC | Fingerprint and IC Card Access Control System Reader |
