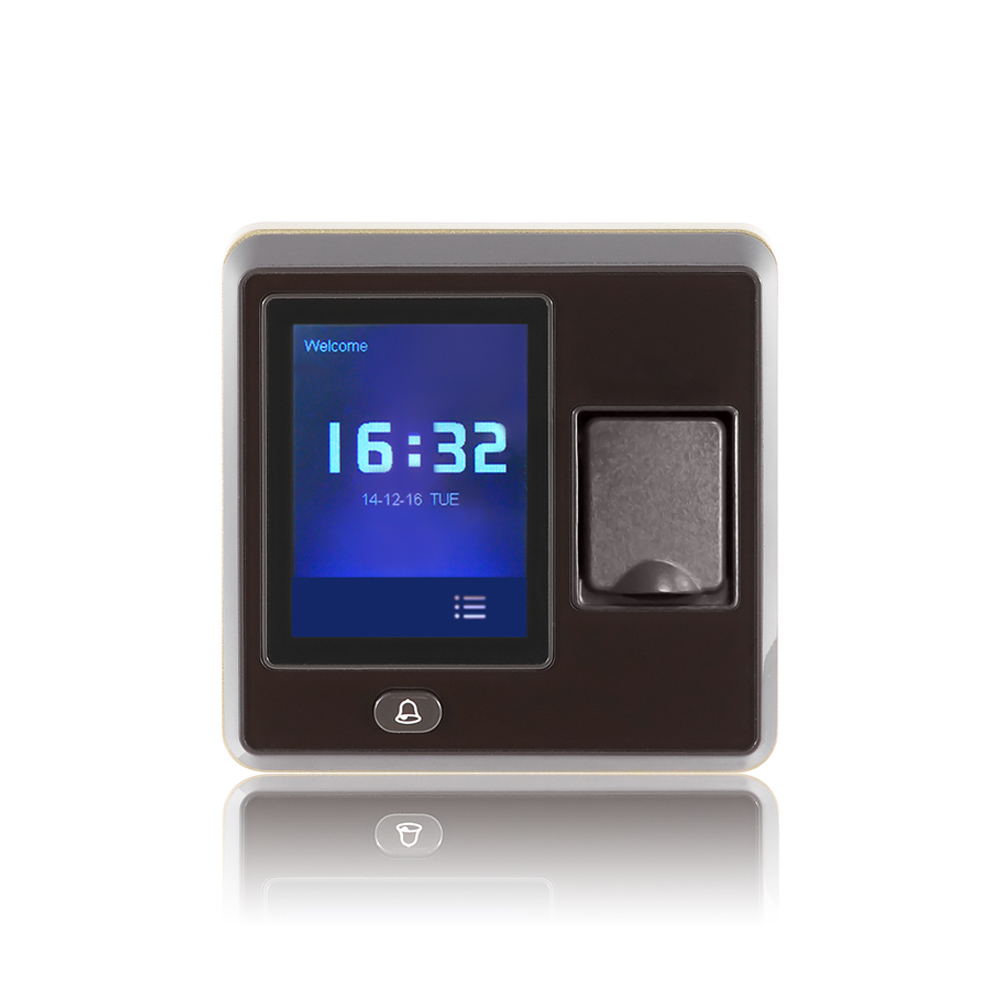

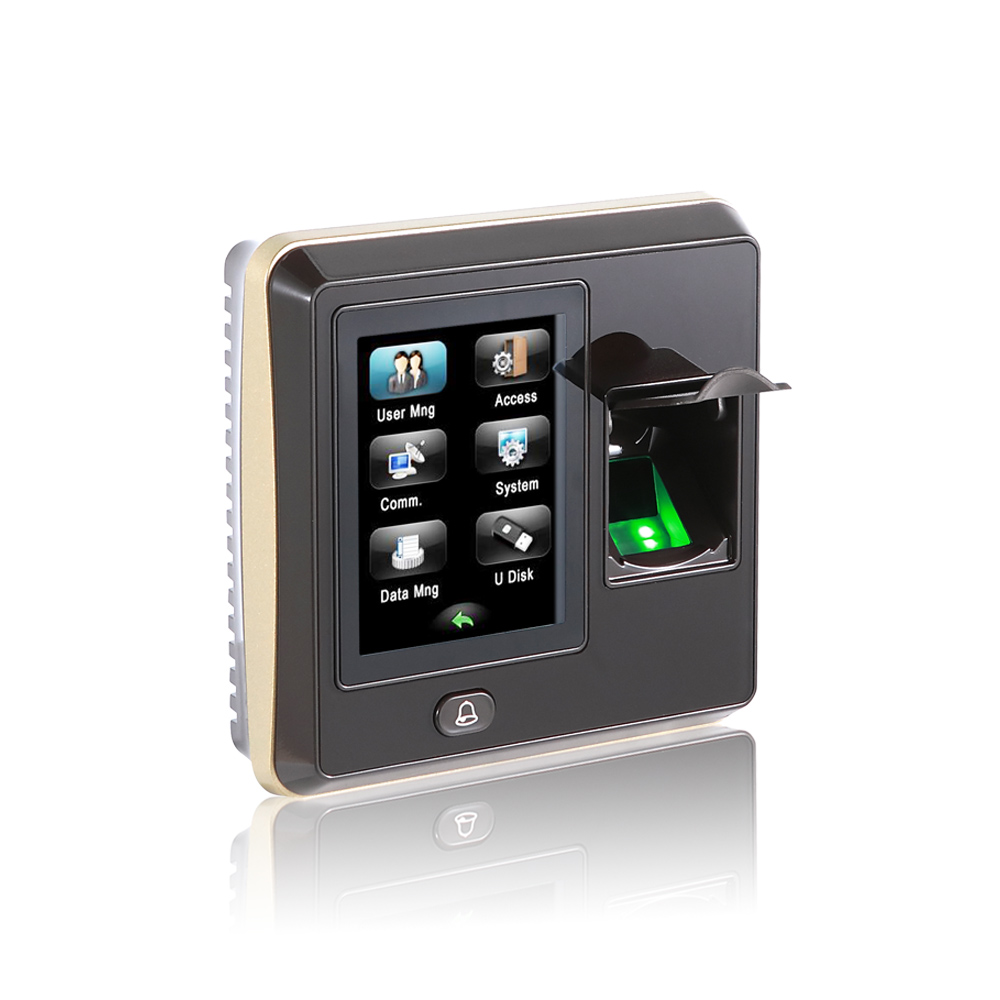

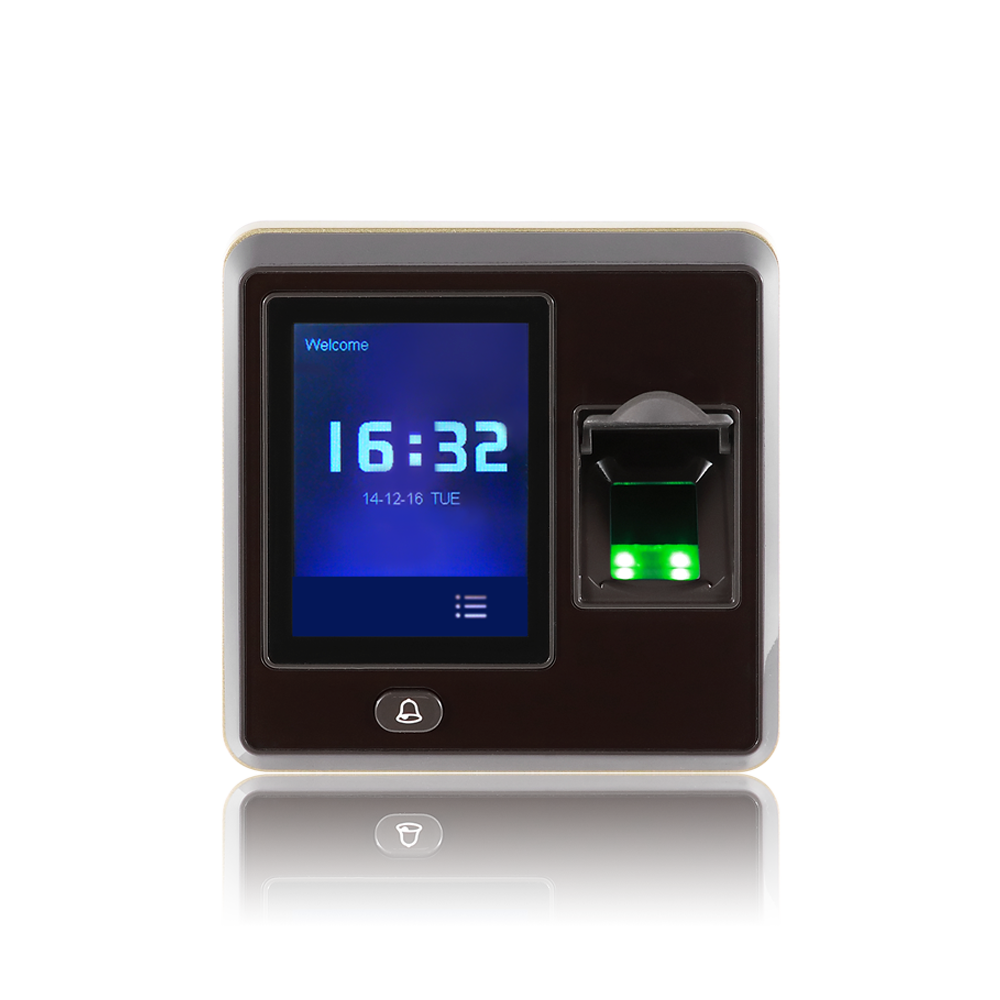

Simple Biometric Finger Print Access Control System Supports USB Flash Drive Standalone Access Contr
Fingerprint Capacity: 1500
Card Capacity(Optional): 5,000(EM/MF)
Log Capacity: 80,000
Access Control: Electric Lock, Door Sensor, Alarm, Exit Button, Door Bell
Power Supply: DC12V/3A(optional)
Simple Biometric Finger Print Access Control System Supports USB Flash Drive Standalone Access Control SystemF04 Fingerprint Access Control System Introduction
Simple Biometric Finger Print Access Control System Supports USB Flash Drive
♦ 2.8 inch TFT touch LCD screen.
♦ Voice prompt for acceptance and rejection.
♦ TCP/IP and RS485 communication.
♦ Up to 15 multi-verification types.
♦ Up to 24 user-defined schedules bell.
♦ Compact and small size.
♦ USB flash drive for offline data management.
♦ Tamper-proof switch and multiple alarm outputs.
Specification
Parameters Of F04 Fingerprint Access Control System
| Model | F04 |
| LCD | 2.8-inch touch Screen |
| Fingerprint Sensor | Optical Sensor(500DPI) |
| Algorithm Version | Finger VX10.0 |
| Communication | TCP/IP, RS485, USB Host |
| Verification Mode | Fingerprint, Card, Password, Fingerprint/Password/Card, Card & Passwor |
| Capacity | Fingerprint: 1,500 Card: 5,000 (optional) Logs: 80,000 |
| Access control Interface | Electric lock, Door sensor, Alarm, Exit button, Door bell |
| Wiegand Signal | Wiegand input & output |
| Aux. Input | 1ea for linkage function |
| Power supply | DC12V/3A (PS-3A is optional) |
| Operating Temperature | 0~45℃（32°~113°F） |
| Operating Humidity | 20~80% |
| Dimension(W*H*L) | 105*105*34mm |
| Function support | Built-in relay, Interface with alarm, Door sensor, Exit button and door lock for access control, 50 timezones, 10 combination, 99 groups, auto state, Schedule bell, Door bell, Holiday control, 9 PIN User ID |
| Customize function | ID/Mifare card reader |
Product Display

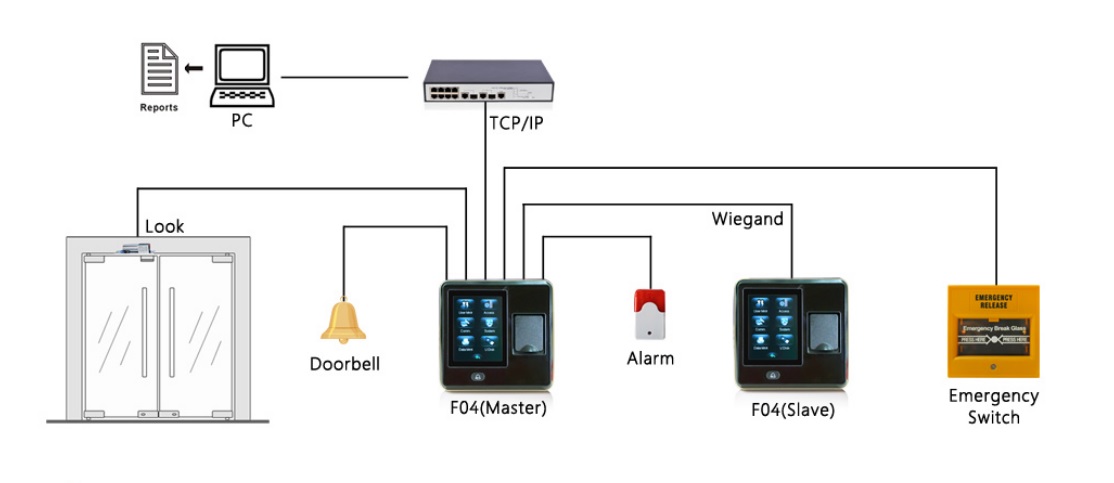

Diagram Of F04 Fingerprint Access Control System
FAQ
1. Q: Do you have any MOQ limit?
A: For your convenience, we can accept 1 pc. But we offer better price for big order.
2. Q: What if the products have problems?
A: We offer a 1-year warranty except for the man-made damage. And we can offer any technical support for operation problems.
3. Q: Can the device’s language be in other languages?
A: Yes, of course. Multi-language can be customized. Our device supports English, Spanish, Portugal, Russian, Arabic, French, German, etc.
4. Q: What about the Payment?
A: You can pay for the order via T/T, Western Union, PayPal, Alibaba payment, L/C, DP
5. Q: How do you ship the goods?
A: Small order: Express like DHL, UPS, TNT, FedEx Big order: By Sea or by airline.
6. Q: How can I get a sample to check your quality?
A: You can require samples to check our quality. You should pay for the sample and freight cost, if you order more than 500 pcs, we return the sample cost to you.
7. Q: What about the lead time for mass production?
A: small order: 1 week after payment Big order: 2-3 weeks.
8. Q： Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required
9. Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us, in your
