8m Integrated UHF RFID Reader Supprort RS232/485 R16-8DB

UHF 8m long distance card reader R16-8DB is a high performance UHF RFID integrated reader with integrated design,multi-tag reading, anti-collision, suitable for logistic and warehouse management, car parking system, and access control, time attendance, bus transportation etc lots of field, can read and write , fast speed read and recognized.This is a popular integrated reader, Support IS018000-6C (EPC GEN2) international standards;
Reservation Now
Detail




Place of Origin: SHANGHAI,CHINA

Brand Name: GRANDING

Certification: CE,FCC

Model Number: R16-8DB

Quick Detail:

Type: UHF

Card Type: UHF

Interface: USB

Application: Parking, Hospital, Company

Support Protocols: ISO 18000-6c(EPC Eng)

Usage: Identification

Model:R16-8DB


Features:

♦Support ISO18000-6C (EPC GEN2) international standards;

♦Integrated structure design, beautiful appearance, suitable for outdoor environment;

♦Integrate high-performance linear polarized antennas, Recognize the long range distance stably;

♦Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;

♦Recognition speed is fast, and the identification of single label can reach 140 times/second;

♦Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;

♦Support development in multiple languages, such as VC, VB, C, etc.

♦Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.


Specifications:

Model

R16-8DB

Supported protocols

ISO18000-6C（EPC GEN2）

working frequency

ISM 902～928MHz and ISM 865～868MHz，Other frequency

standards (customized)

Operation mode

FHSS

RF power

0~30dBm，Software Programmable

Reading speed

Single card average reading is 64bits, less than 6ms,

Software Programmable

Work mode

reading Active and reading passive, Software Programmable

Communication Ports

N:Wiegand26/34/98, RS232/RS485,USB

E:Wiegand26/34/98, RS232/RS485,TCP ,USB

Input interface

1 way trigger input

Reading range

0-5 m(High power 0~8m)

Status indicators

buzzer

Antenna

8dbi circular polarization antenna

Power supply

DC＋9V

Operation Temp

-20℃~+70℃

Weight

1.2 Kg（Package:2.2kg）

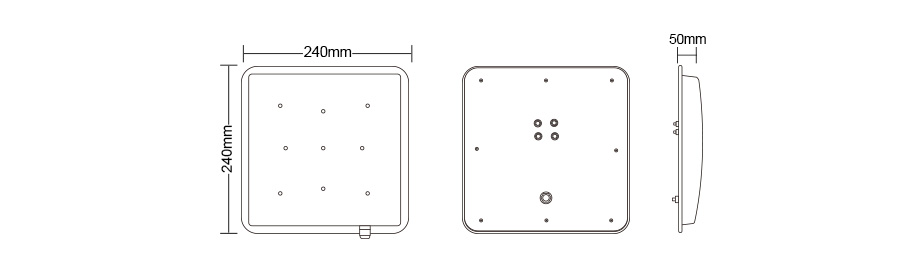

Size

240mm×240mm×50mm
