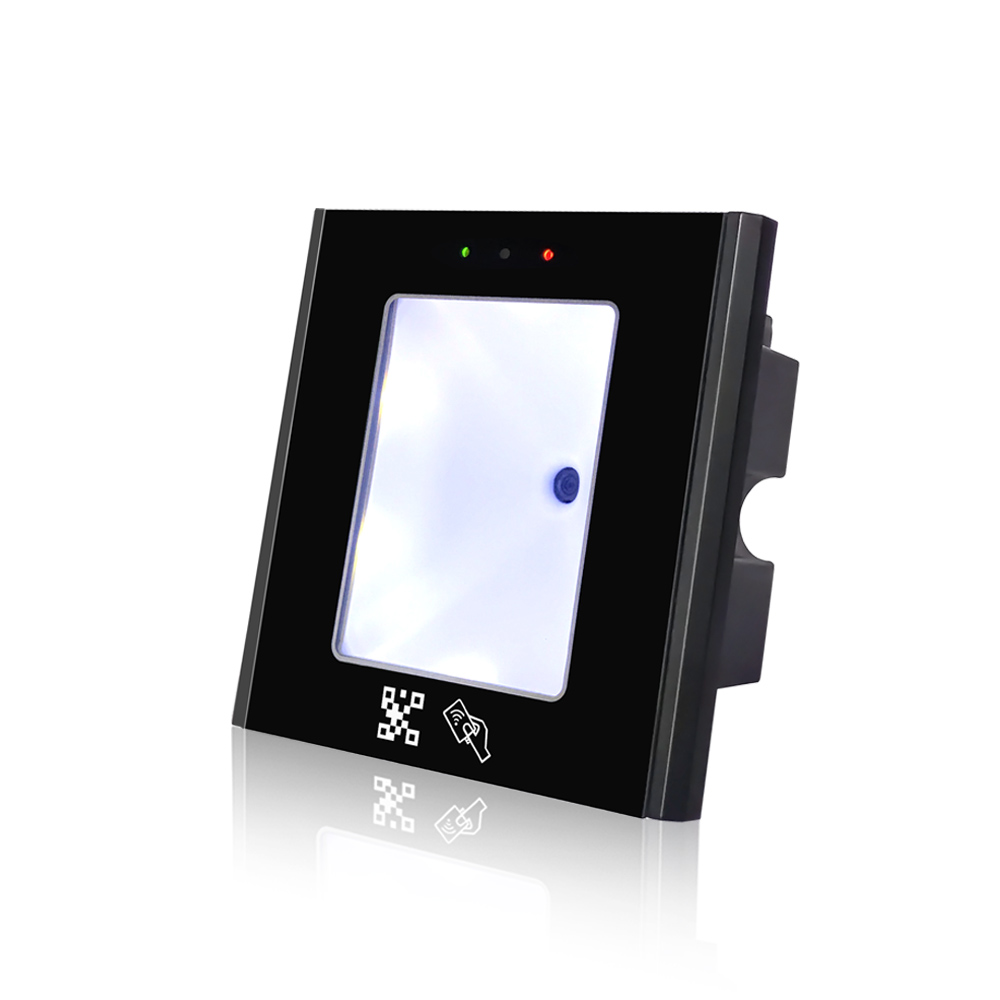

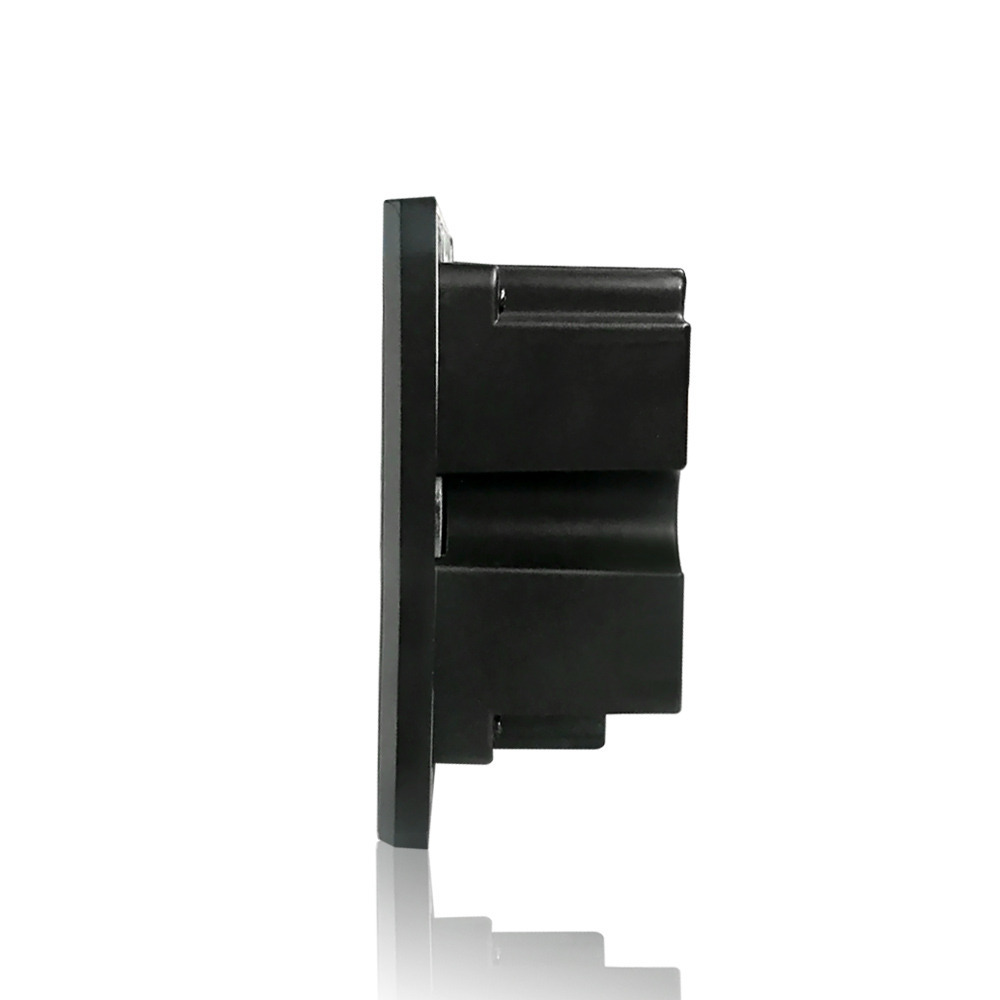

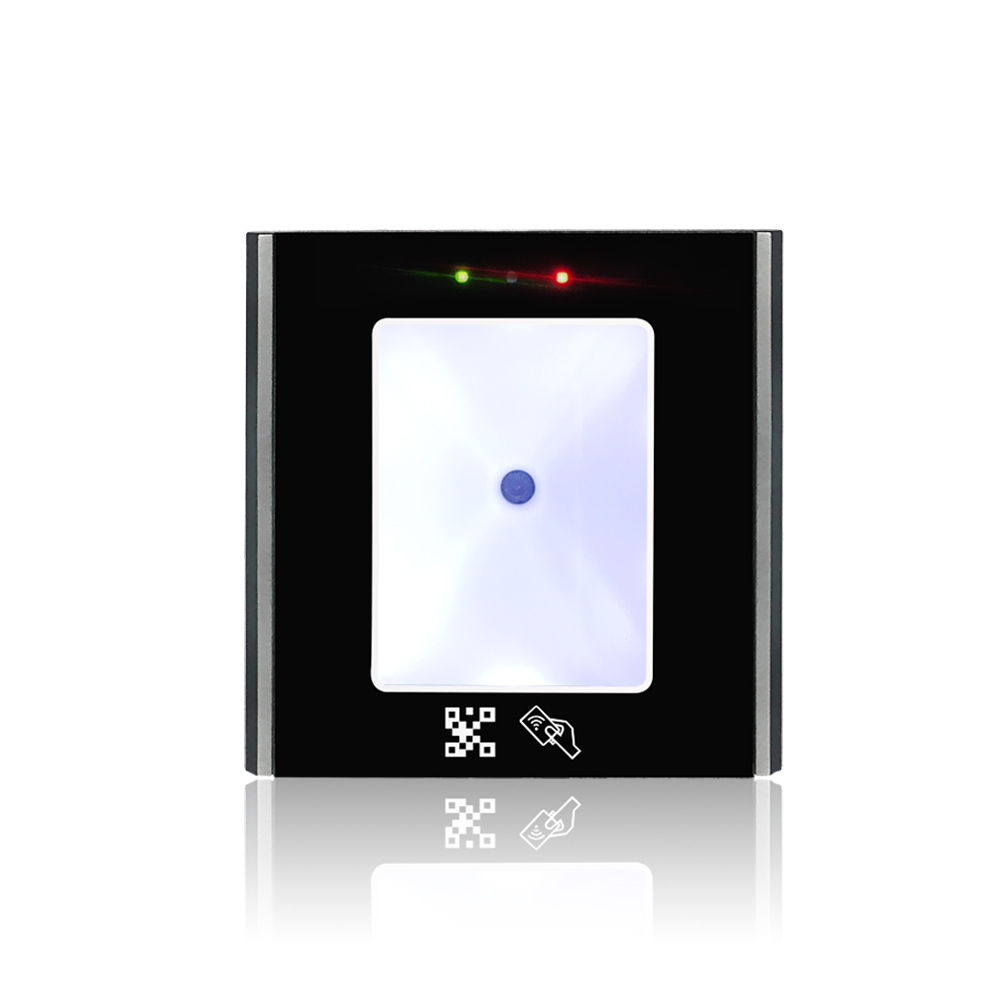

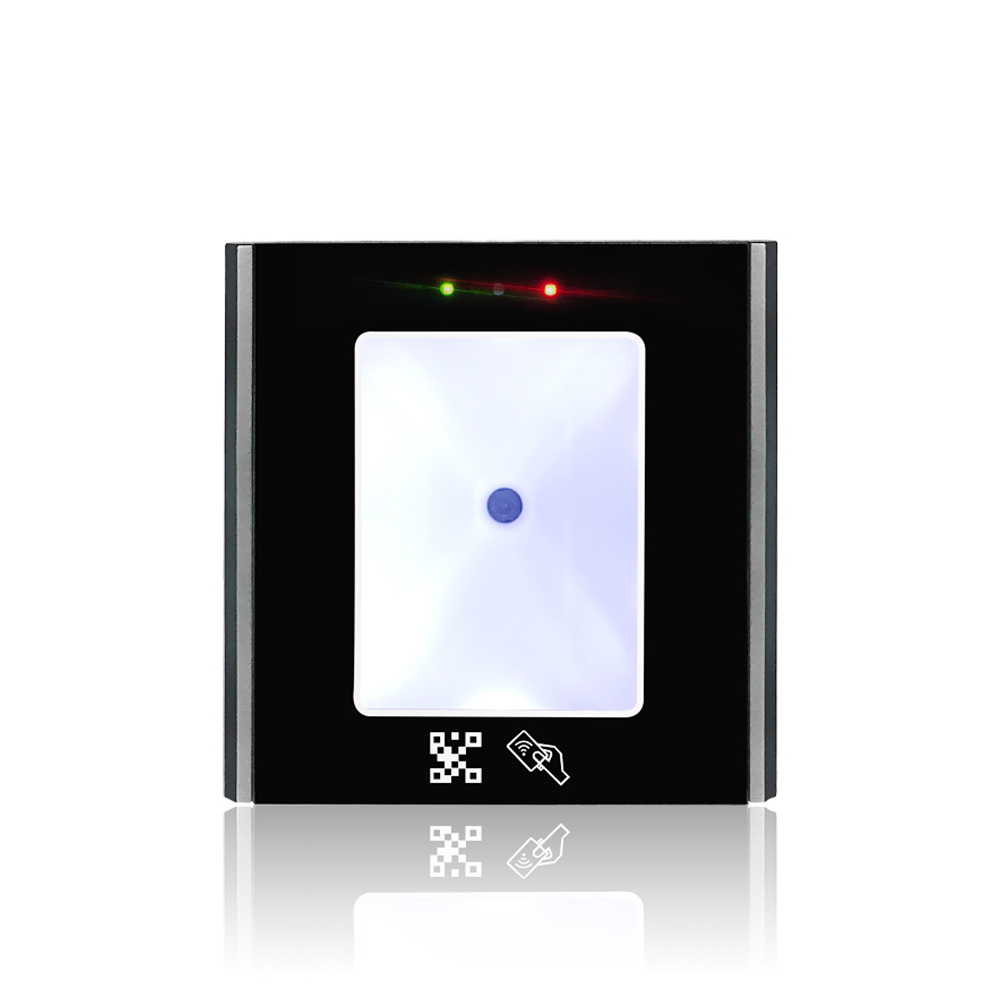

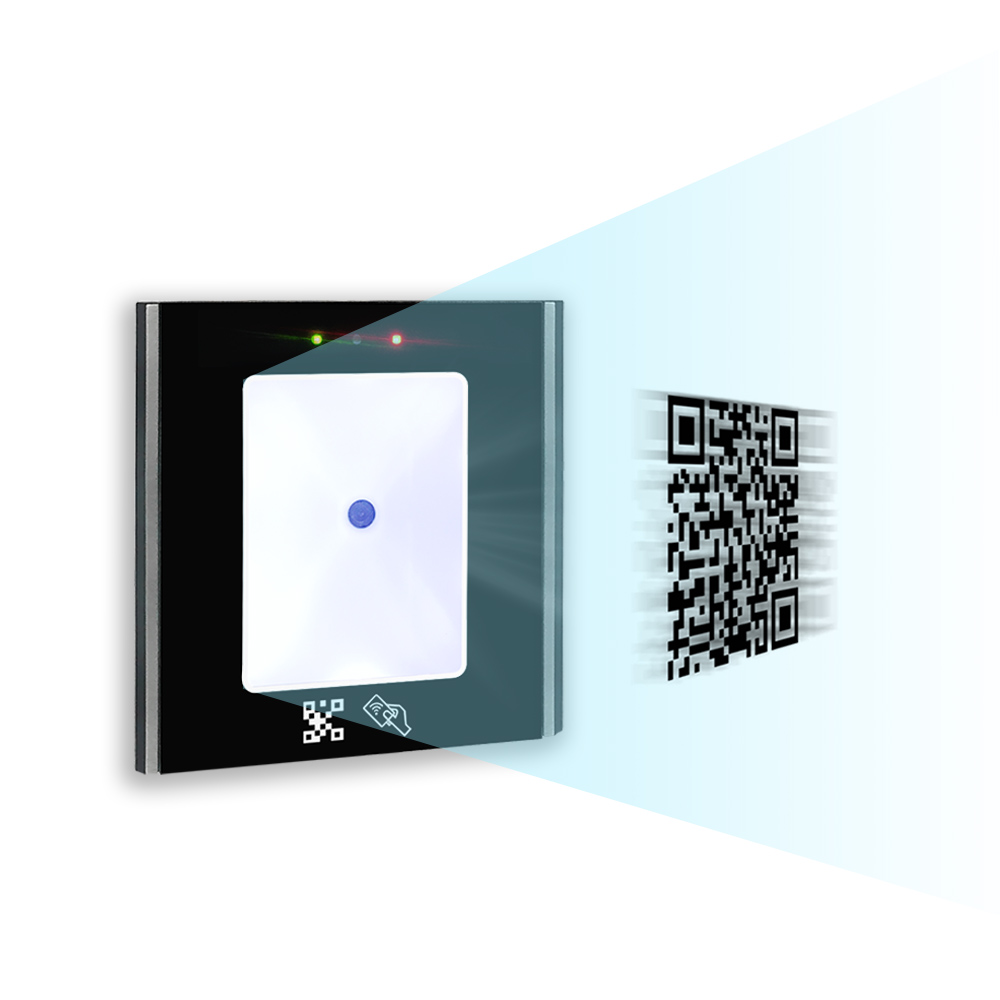

QR code readerWiegand 26/34, RS485, RS232, USB, TCP/IP optional QR100
Place of Origin: SHANGHAI,CHINA
Brand Name: GRANDING
Certification: CE,FCC
Model Number: QR100
Quick Detail:
Product Name:QR/RFID Card Reader With USB Port
Identification Method:QR Code/ LC Card/ LD Card/NFC Card
Communication Mode:Wiegand/USB/RS232/RS485
Read The Directions (Barcode):Lens As The Center Of 45° Incline
Working Voltage:8-12V
Card Read Distance(Card):3~6CM
Reading Range(QR Code):0-20cm
Operating System:WindowsXP/7/8/10,Linux
Features:
QR code + RFID card reader is a new generation of smart card reader developed by our company.Theappearance of this product adopts the standard 86 boxes of industrial standards, with fast scanning speed,high recognition rate and strong compatibility.It can be connected to any controller that supports wiganinput, and is suitable for various application scenarios.At present, it is widely used in business office building visitor entry management, scenic area tourism personnel management, community visitor entryand exit management, administrative hall access control management, supporting gate, access control,passenger plane, smart home, etc. For the traditional industry card system to achieve a perfect upgrade.
Specifications:
Model | QR100 |
Material case | PC |
Identify panel | Tempered glass |
Interface | Wiegand 26/34, RS485, RS232, USB, TCP/IP optional |
Decoding support | QR code, one dimensional code |
Voltage Support | 4-15V Wide voltage input |
Current | 800mA |
Reading directions | Camera centric slant 45° |
Reading speed | <200ms |
Reading range | 0-20cm |
Reading feature | Auto-induction beep hint |
Light source | With LED light source itself, anti-highlight interference |
Decode Mode | Image decoding |
Temperature | -20~70°C |
Humidity | 10%~90% |
Operate system | Window( xp 7 8 10 ), Linux |
Indicating status light | Red-Work, Green-Feedback, Light Green-Internet |
Reading range | 3-6cm |
Reading card type | EM or Mifare card |
Size | 86x86x42mm |

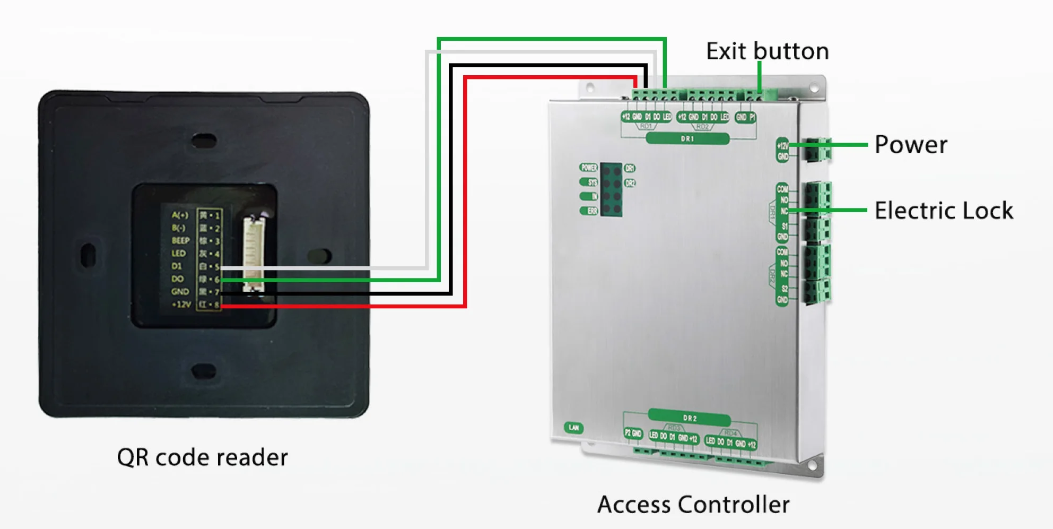

Diagram:
