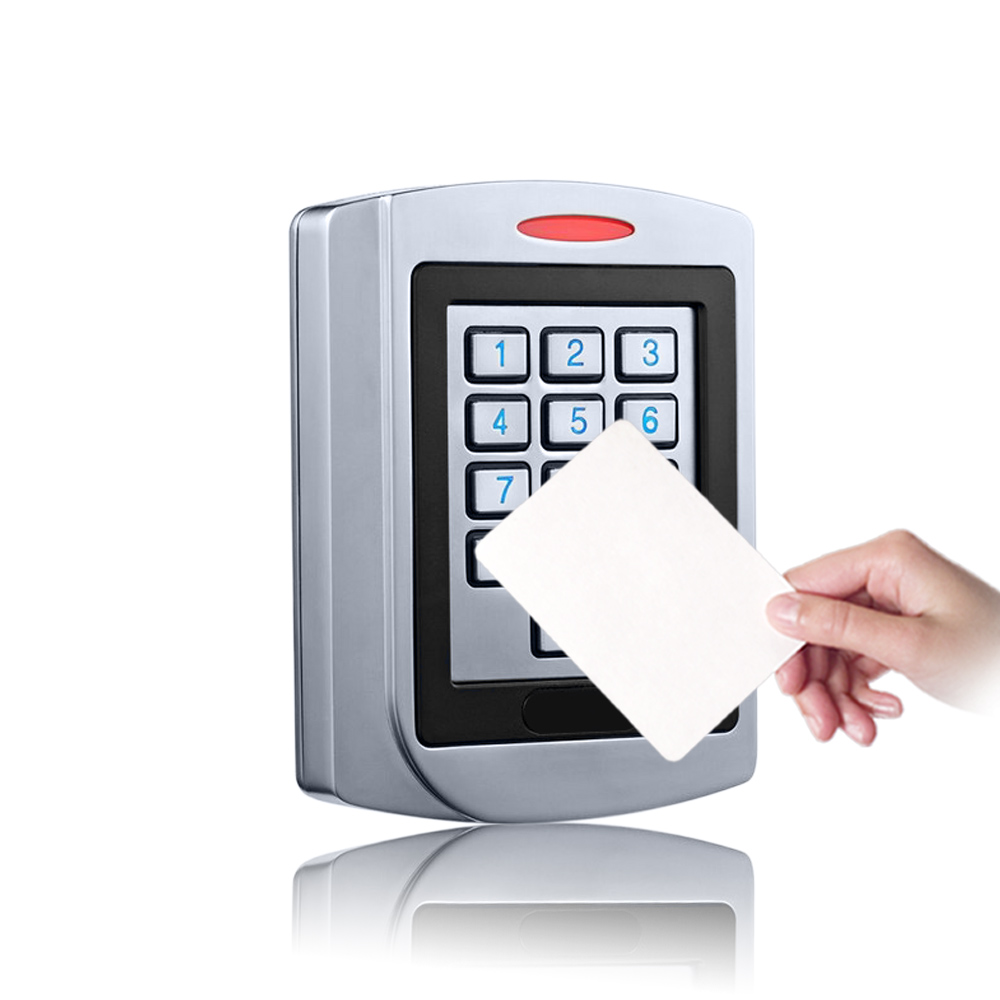

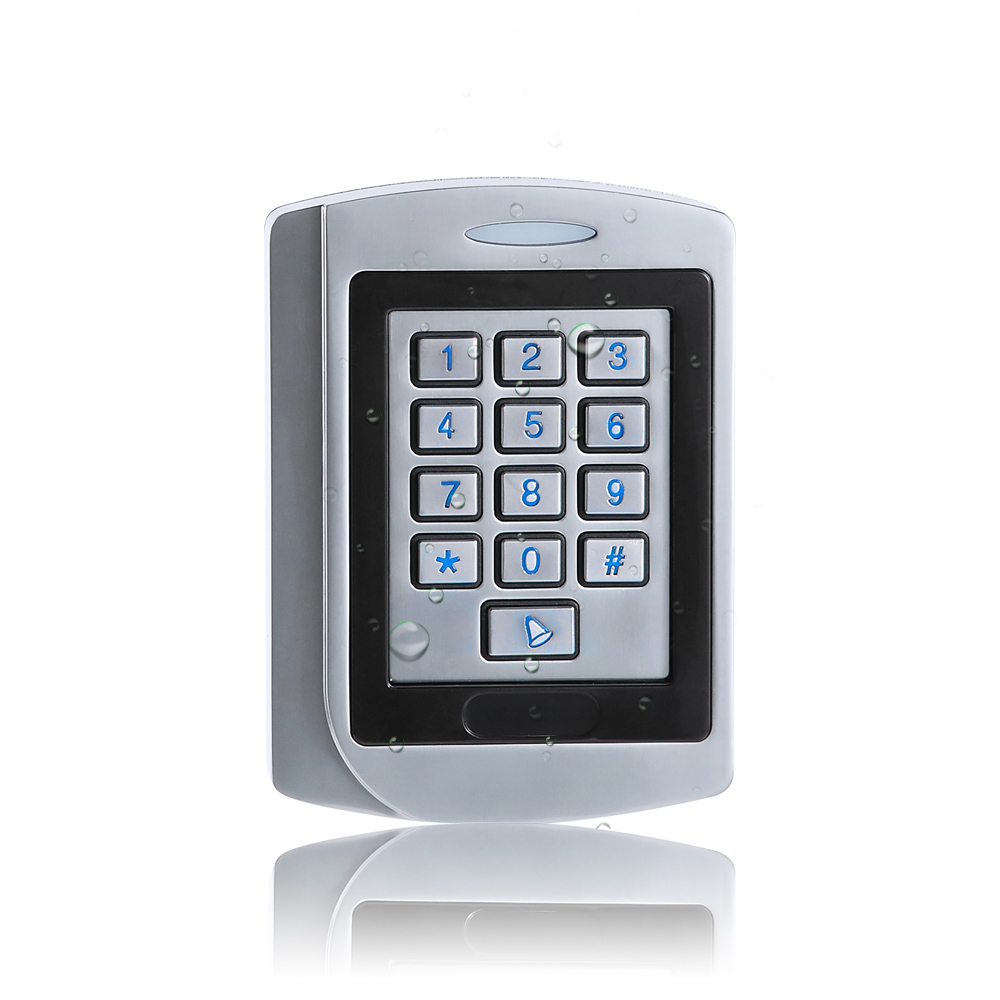

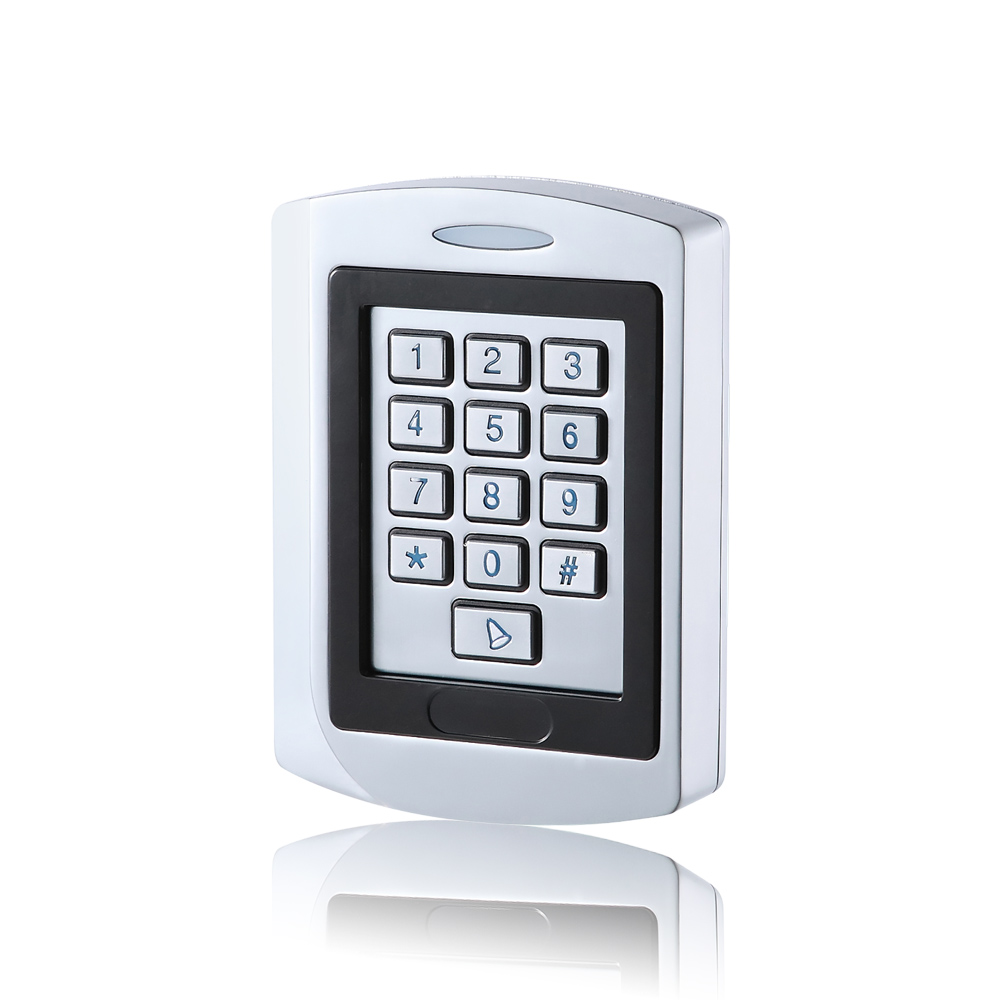

PIN Code And RFID Card Access Control Reader Metal Cover With IP68 Waterproof And Anti-Vandal
Keypad: White Backlit, Numeric Keys 0-9, Function Keys , #, Bell

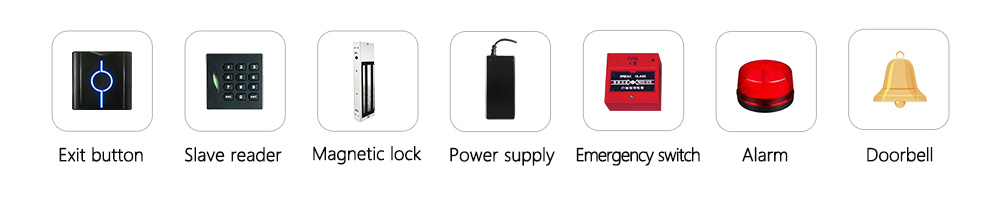

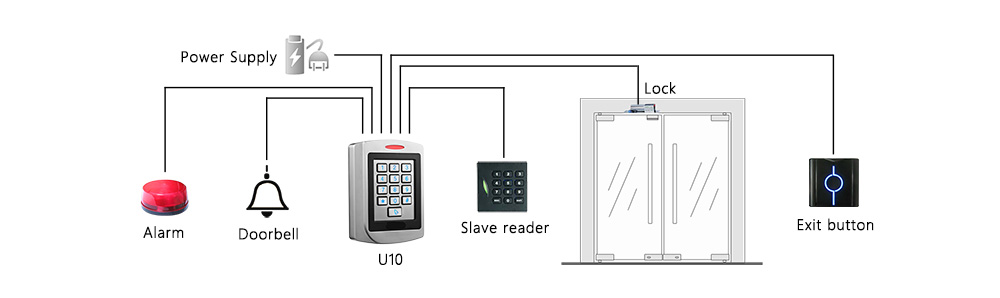

Access Control Interface: Electric Lock, Exit Button, Alarm, Doorbell, Door Sensor
Wiegand Format: Wiegand26/34 Input & Output
Reading Distance: 3-6CM
Operate Temperature:-35℃-60℃
Built-in Card Reader: Standard ID Card, Optional IC Card

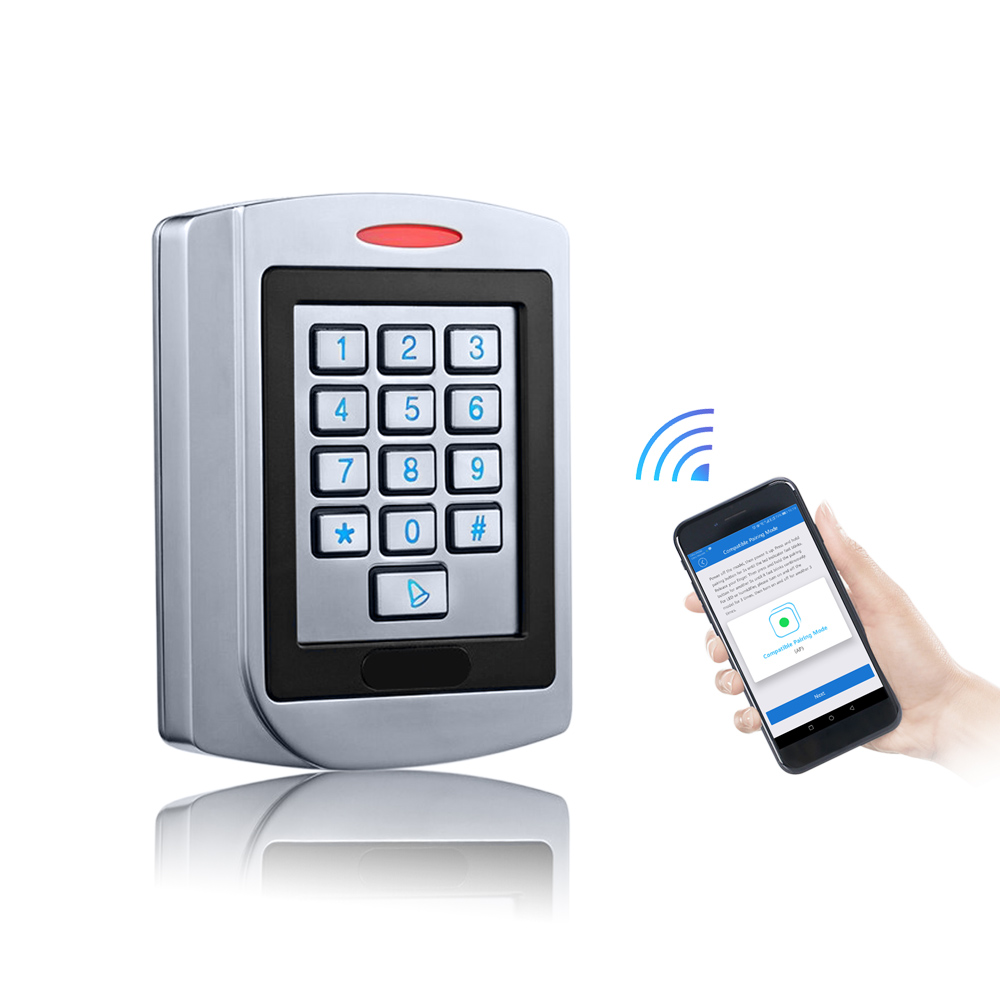

Verification Mode: Card, PIN, Card + PIN, WiFi(optional)
PIN Code and RFID Card Access Control Reader Metal Cover with IP68 Waterproof and Anti-vandal Features. Model U10: Anti-Vandal Waterproof IP67 PIN Code+RFID Card Access Control Reader (Optional: WIFI App)
RFID Card Access Control U10 Features:
1/ 2000 uses, supports Card, PIN, Card + PIN, WiFi APP(optional).
2/ Anti-vandal, Waterproof & Backlight Keypad.
3/ Wiegand 26/34 input & output.
4/ Mounts easily to interior and exterior walls.
5/ One programmable relay output, NO, NC, COM.
6/ Adjustable door output time, Alarm time, Door open time.
7/ Block enrollment, can enroll maximum of 2,000 consecutive card within 2 minutes.
8/ Very low power consumption (<60mA).
9/ Built in light dependent resistor (LDR) for anti tamper.
10/ WiFi function is optional.
Specification
Parameters Of RFID Card Access Control U10:
| Model | U10 | ||
| Operating Voltage | 12-24VDC | Operate Humidity | 10%-90%RH |
| User Capacity | 2000 (Card Capacity) | Protection Grade | IP67 |
| Keypad | White backlit, Numeric keys 0-9, function keys *, #,Bell | Access Control Interface | Electric Lock, Exit Button, Alarm, Doorbell, Door sensor |
| Verification Type | Card, PIN, Card+PIN, WiFi(optional) | Door Relay Time | 0~99 seconds |
| Reading Distance | 3-6cm | Wiegand format | Wiegand26/34 input & output |
| Active Current | <80mA | Alarm Time | 0~3 minutes |
| Idle Current | <60mA | Dimensions | 120*76*27mm |
| Lock Output load | Max2A | Net Weight | 0.6KG |
| Alarm Output load | Max1A | Gross Weight | 0.8KG |
| Operate Temperature | -35℃-60℃ | Built-in Card Reader | 125KHz EM card, 13.56Mhz IC card |
| Model | Description |
| U10/ID | Waterproof IP68 125KHz ID Card Access Control Reader |
| U10/IC | Waterproof IP68 13.56MHz IC Card Access Control Reader |
| U10/ID/APP | Waterproof IP68 125KHz ID Card Access Control Reader with WIFI APP |
| U10/IC/APP | Waterproof IP68 13.56KHz IC Card Access Control Reader with WIFI APP |
Product Display
FAQ
1. Q: Do you have any MOQ limit?
A: For your convenience, we can accept 1 pc. But we offer better price for big order.
2. Q: What if the products have problems?
A: We offer a 1-year warranty except for the man-made damage. And we can offer any technical support for operation problems.
3. Q: Can the device’s language be in other languages?
A: Yes, of course. Multi-language can be customized. Our device supports English, Spanish, Portugal, Russian, Arabic, French, German, etc.
4. Q: What about the Payment?
A: You can pay for the order via T/T, Western Union, PayPal, Alibaba payment, L/C, DP
5. Q: How do you ship the goods?
A: Small order: Express like DHL, UPS, TNT, FedEx Big order: By Sea or by airline.
6. Q: How can I get a sample to check your quality?
A: You can require samples to check our quality. You should pay for the sample and freight cost, if you order more than 500 pcs, we return the sample cost to you.
7. Q: What about the lead time for mass production?
A: small order: 1 week after payment Big order: 2-3 weeks.
8. Q： Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required
9. Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us, in your
