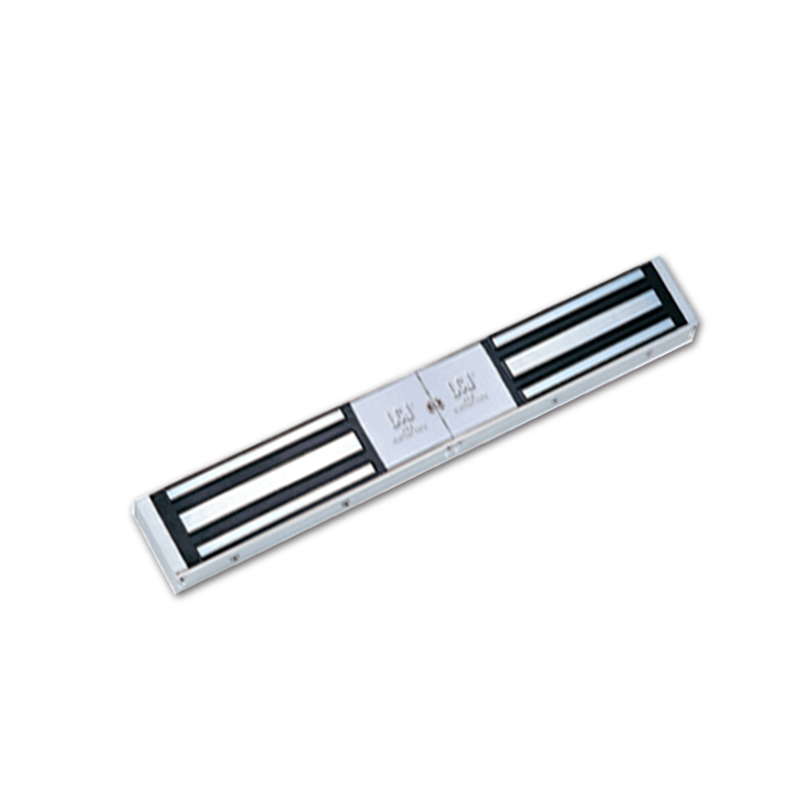

EM300D 400KG electric strike lock , power door lock for swinging wooden or stainless steel door

Double door Electric Magnetic Lock EM300D Of Holding Force 600 KG With LED , Signal , Time Delay

Reservation Now

Detail

Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EM300D

Quick Detail:

Product Name:Magnetic Lock

Holding Force:2*300KG

Power Supply:12VDC

Type Of The Door:All Type

Open Model:Swinging Door 90

Signal:NO, NC,COM

Time Delay:0,5,10

Features:

1. Power to lock;

2. Double-door application

3. Magnetic lock, no mechanical damage

4. power supply:12/24VDC

5. With LED, Signal output( NO, NC, com) or time delay (0, 5, 10S)

6. Holding force: 2X300KG

7. starting & standby current: 2x380mA

8. Application all type of door fire exit path, no frame door can choose bracket

9. Swinging door 90

Specifications:

Lock type/fail safe	Dimension
Magnetic lock	Lock Dimension: 480x56.5x29mm
Power to lock	Package size: 580X110X35mm
Holding Force	Opening mode
2*300KG	Swinging door 90 degree
Power supply	Gross Weight
12VDC	4.1Kg
Current consumption	Environment
Starting current:2*380mA	Operation temperature: -20°C ~ 55°C
standby current:2*380mA	Operation humidity: 20% ~ 80%

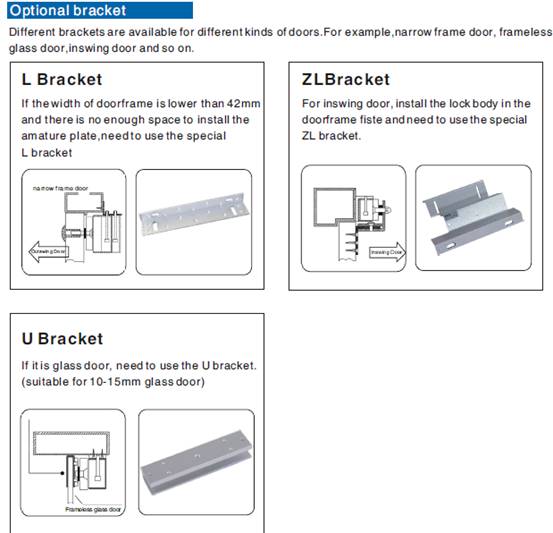

Bracket selection	APPLICATION DOOR
U type, Z type and L type (optional)	All type of door fire exit path, no frame door can choose bracket
Function Support	Customize Function
LED, signal output( NO, NC, COM) or time delay (0, 5, 10S)	Time delay
