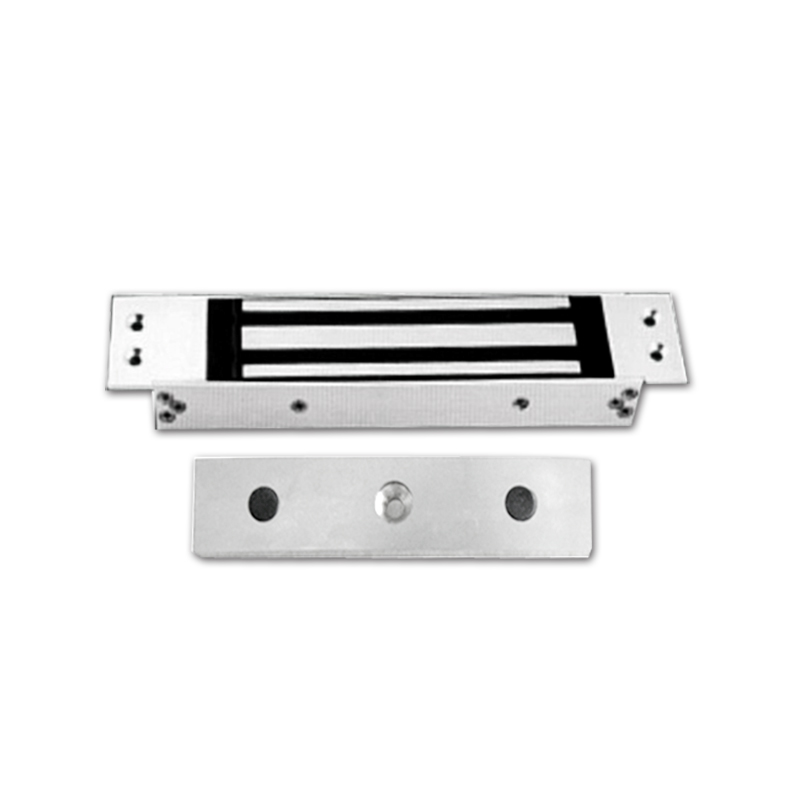

EM300B Glass Door Electric Lock / access control magnetic lock 300KG with time delay

Application Electric Magnetic Lock EM300B Of Holding Force 300 KG

Reservation Now

Detail

Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EM300B

Quick Detail:

Product Name:Magnetic Lock

Holding Force:300KG

Power Supply:12VDC

Type Of The Door:All Type

Open Model:Swinging Door 90

Signal:NO, NC,COM

Features:

1. Power to lock;

2. Magnetic lock, no mechanical damage

3. power supply:12VDC

4. Holding force: 300KG

5. starting current:320mA standby current: 380mA

6. Application all type of door fire exit path, no frame

door can choose bracket

7. Swinging door 90

Specifications:

Lock type	Dimension
Magnetic lock	Lock Dimension: 252x50.5x29mm
Power to lock	Package size: 290X65X60mm
Holding Force	Opening mode
280-300Kg	Swinging door 90 degree
Power supply	Gross Weight
12VDC	2Kg
Current consumption	Environment
Starting current:450mA	Operation temperature: -20°C ~ 55°C
standby current:450mA	normal atmospheric temperature+8°C

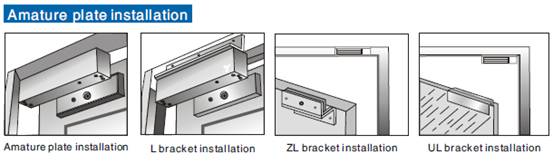

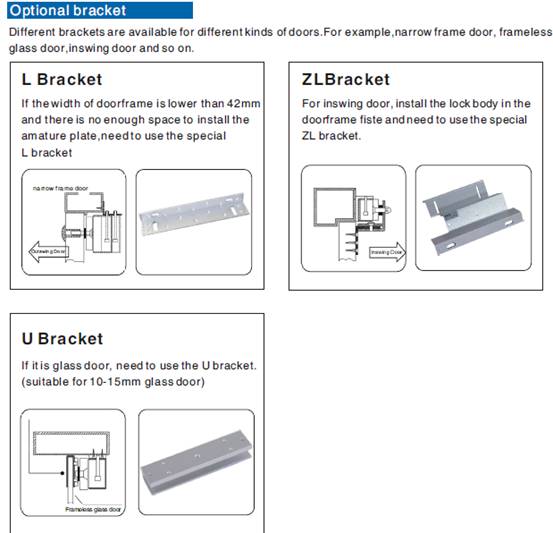

Bracket selection	APPLICATION DOOR
No frame door can choose U type, Z type and L type (optional)	all type of Wooden /Metal /Glass Door, fire exit path, Embedded installation
Function Support	Customize Function
Without LED, signal output( NO, NC, COM) or time delay	N/M
