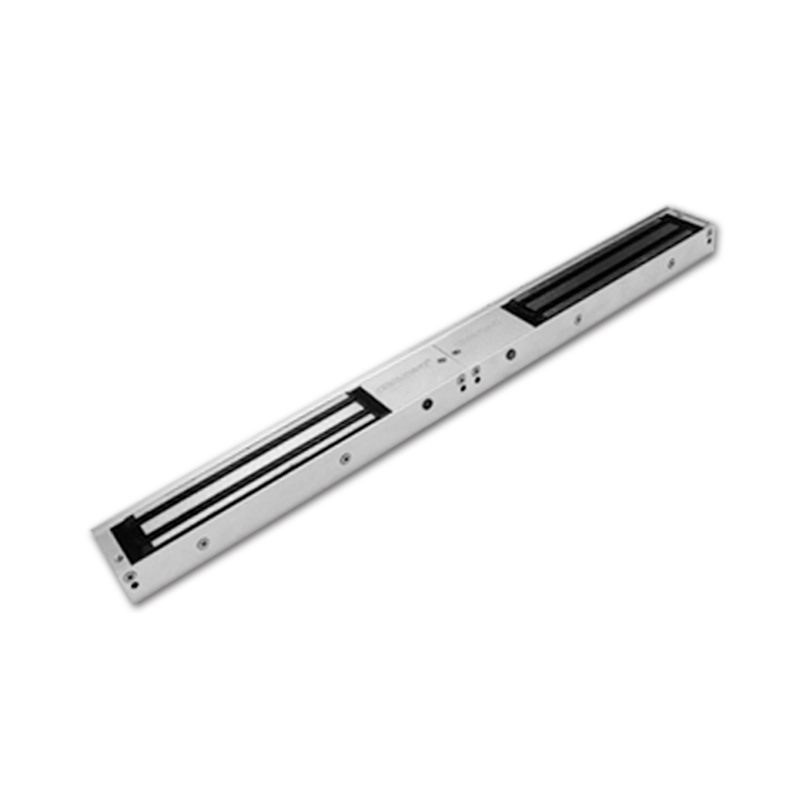

EM270D 12V DC Electric Magnetic Lock for Double Door With LED , timer for Access control

Reservation Now

Detail

Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EM270D

Quick Detail:

Product Name:Magnetic Lock

Holding Force:540KG

Power Supply:12VDC

Type Of The Door:All Type

Open Model:Swinging Door 90

Signal:NO, NC,COM

Features:

1. Power to lock;

2. Double-door application

3. Magnetic lock, no mechanical damage

4. power supply:12VDC

5. With LED, Signal output( NO, NC, com) or time delay (0, 5, 10S) 6. Holding force: 540KG

7. starting & standby current:2x380mA

Application all type of door fire exit path, no frame door can choose bracket

9. Swinging door 90

Specifications:

Lock type	Dimension
Magnetic lock	Lock Dimension: 500x48x26.5mm
Power to lock	Package size: 580X110X35mm
Holding Force	Opening mode
2x270Kg	Swinging door 90 degree
Power supply	Gross Weight
12VDC	4Kg
Current consumption	Environment
Starting current:640mA	Operation temperature: -20°C ~ 55°C
standby current:640mA	normal atmospheric temperature+8°C

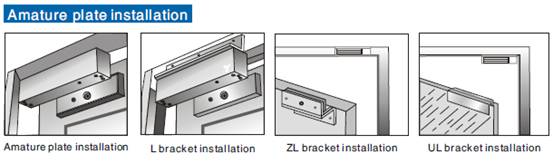

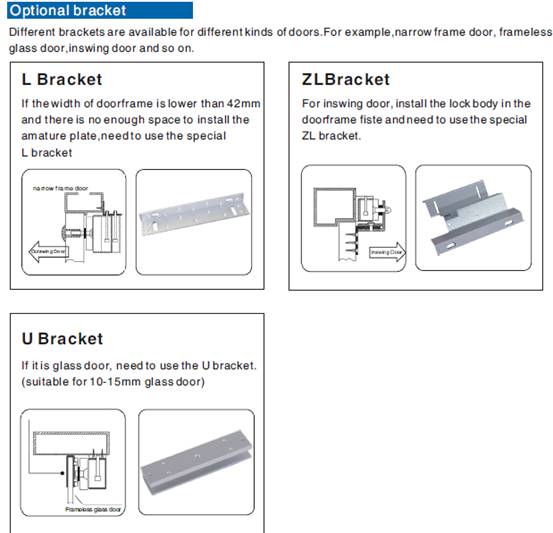

Bracket selection	APPLICATION DOOR
U type, Z type and L type (optional)	All types of double Wooden /Glass / Metal Door, Fire Proof Door
Function Support	Customize Function
LED, signal output( NO, NC, COM) or time delay(0, 5, 10S)	Time delay
