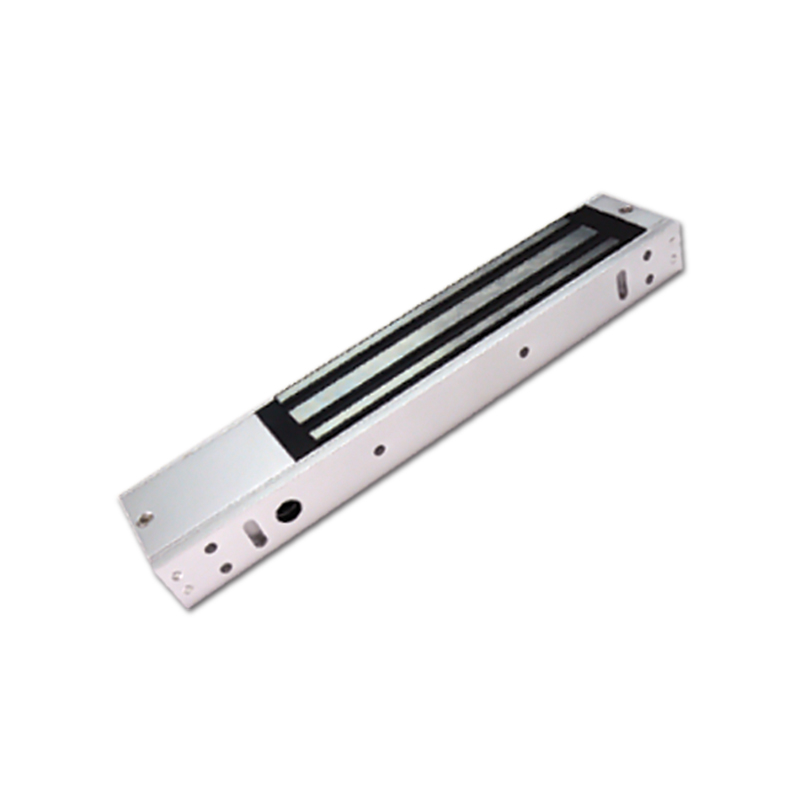

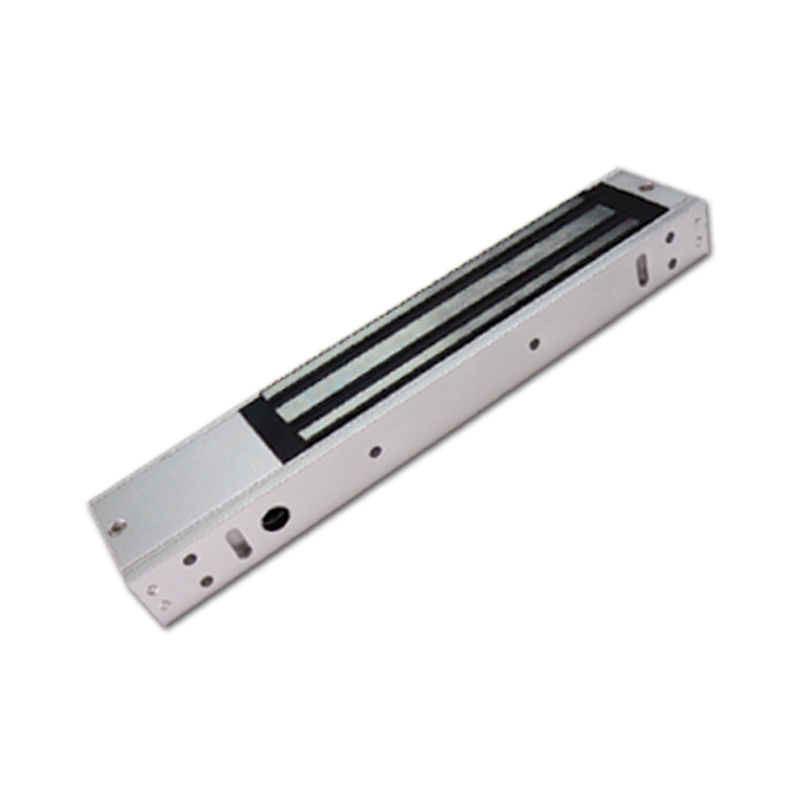

EM270A Electromagnetic door lock system / magnetic locks for glass doors , Fire Proof Door

Application All Type Of Door Electric Magnetic Lock EM270A With LED , Signal / Time Delay

Reservation Now

Detail

Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EM270A

Quick Detail:

Product Name:Magnetic Lock

Holding Force:270KG

Power Supply:12VDC

Signal:NO, NC,COM

Type Of The Door:All Type

Open Model:Swinging Door 90

Features:

Power to lock;

Magnetic lock, no mechanical damage

3. power supply:12/24VDC

4. Holding force: 270KG

5. With LED, Signal output( NO, NC, com) or time delay.

6.Current:480mA or 240mA(dual voltage),380mA(signle voltage)

7. Swinging door 90

8. Application all type of door fire exit path, no frame door can choose bracket

Specifications:

Lock type	Dimension
Magnetic lock	Lock Dimension: 253x48x26.5mm
Power to lock	Package size: 290X65X60mm
Holding Force	Opening mode
270Kg	Swinging door 90 degree
Power supply	Gross Weight
12/24VDC	2Kg
Current	Environment
Dual voltage: Starting current:450mA standby current:450mA	Operation temperature: -20°C ~ 55°C
Single voltage: Starting current:330mA standby current:330mA	normal atmospheric temperature+15°C (dual voltage) normal atmospheric temperature+8°C (signal voltage)

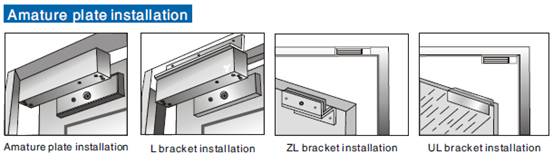

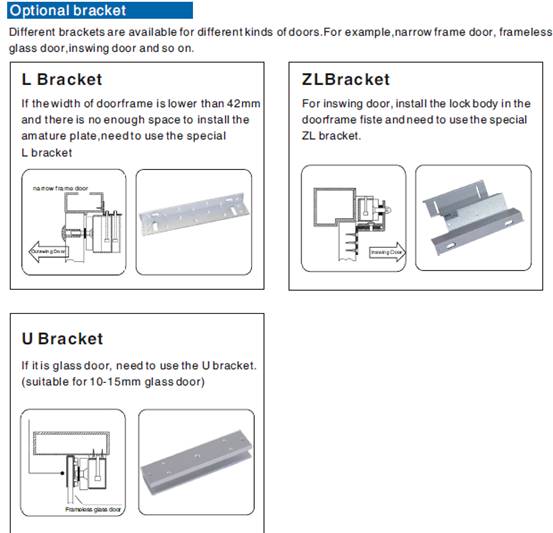

Bracket selection	APPLICATION DOOR TYPE
U type, Z type and L type (optional)	All types of Wooden Door, Glass Door, Metal Door, Fire Proof Door
Function Support	Customize Function
LED, signal output( NO, NC, COM) or time delay	Time delay
