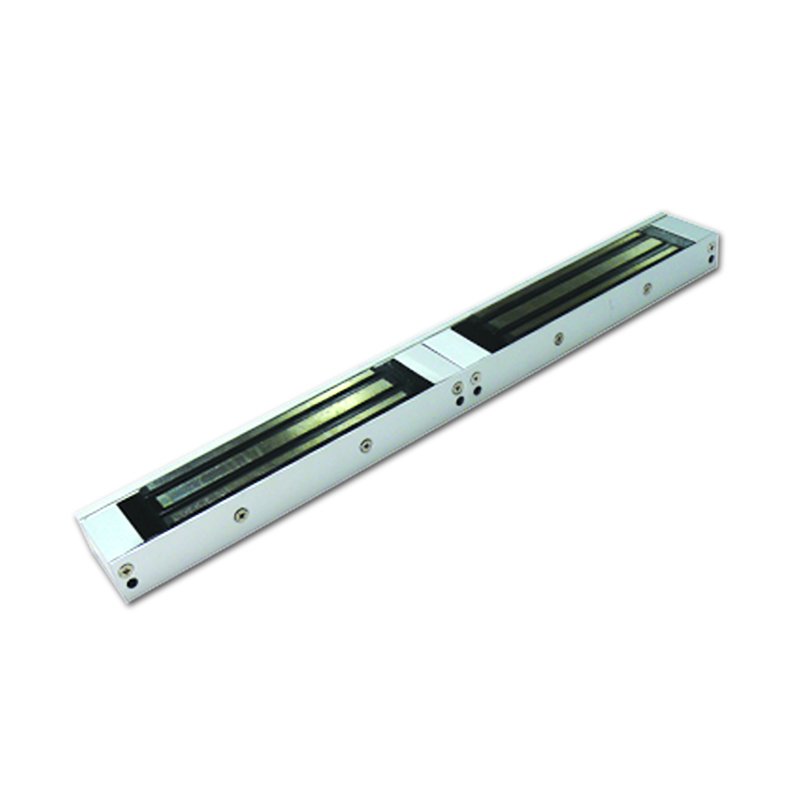

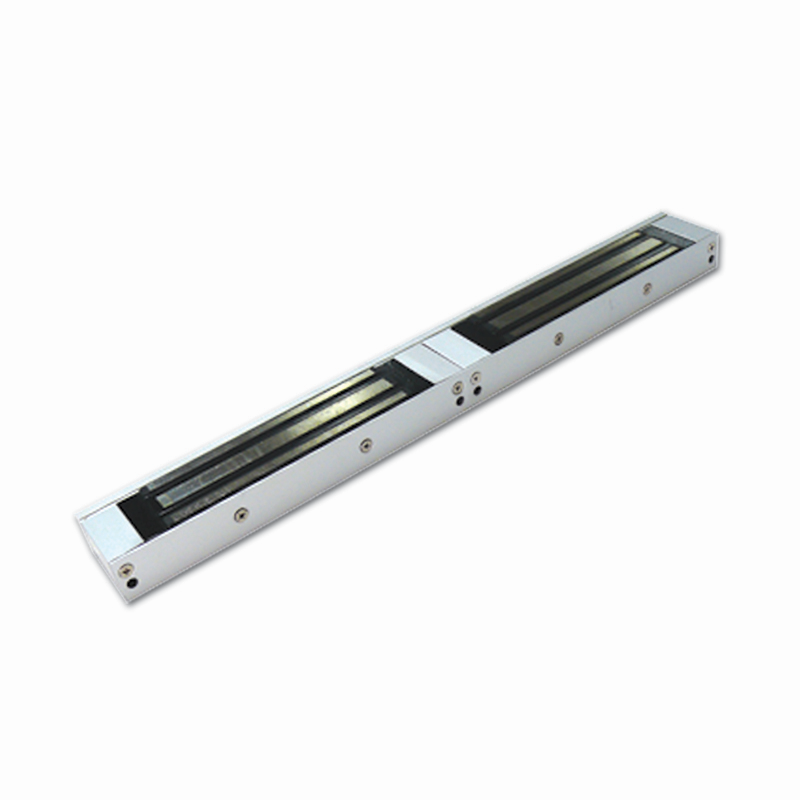

EM150D Safety Electric Lock , security gate magnetic lock with Holding force 300KG
  • EM150D Safety Electric Lock , security gate magnetic lock with Holding force 300KG
    • 1/1
  • EM150D Safety Electric Lock , security gate magnetic lock with Holding force 300KG

EM150D Safety Electric Lock , security gate magnetic lock with Holding force 300KG

Double Door Electric Magnetic Lock EM150D Of Holding Force 300 KG
Reservation Now
Detail



Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EM150D



Quick Detail:

Product Name:Magnetic Lock

Holding Force:2*150KG

Power Supply:12VDC

Type Of The Door:All Type

Open Model:Swinging Door 90

Signal:NO/NC/COM

Time Delay:0,5,10s



Features:

1. Power to lock;

2. Double-door application

3. Magnetic lock, no mechanical damage

4. power supply:12VDC

5. With LED, Signal output( NO, NC, com) or time delay

(0, 5, 10S)

6. Holding force: 2x150KG

7. starting current:640mA standby current:640mA

8. Application all type of door fire exit path, no frame

door can choose bracket

9. Swinging door 90



Specifications:


Lock type/fail safe

Dimension

Magnetic lock

Lock Dimension: 336x38x23mm

Power to lock

Package size:


370X65X60mm

Holding Force

Opening mode

2*150KG

Swinging door 90 degree

Power supply

Gross Weight

12VDC

1.6kg

Current consumption

Environment

Starting current:640mA

Operation temperature: -20°C
~ 55°C

standby current:640mA

Operation humidity: 20% ~ 80%

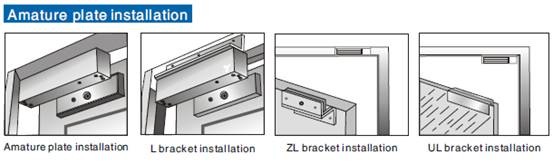

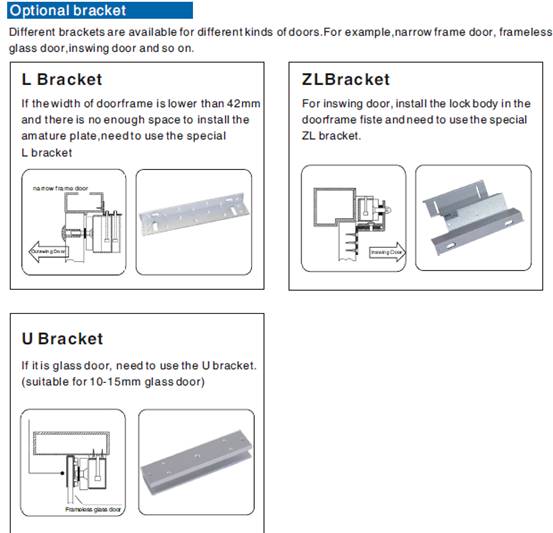

Bracket selection

APPLICATION DOOR

U type, Z type and L type (optional)

All type of door fire exit path, no frame door can choose bracket

Function Support

Customize Function

With LED, Signal output (NO, NC, COM)

Time delay(0,5,10s)

Order Bracket (optional)

EMJ150L

L type bracket for EM150D

EMJ150Z

Z type bracket for EM150D
