EC3101 12V DC small electromagnetic lock ,electronic door locking systems Holding force 250KGr
  • EC3101 12V DC small electromagnetic lock ,electronic door locking systems Holding force 250KGr
    • 1/1
  • EC3101 12V DC small electromagnetic lock ,electronic door locking systems Holding force 250KGr

EC3101 12V DC small electromagnetic lock ,electronic door locking systems Holding force 250KGr

Electric Strike EC3101 Application For Swinging 90 Degree Wooden Door Or Stainless Steel Door With Power To Open
Reservation Now
Detail




Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EC3101


Quick Detail:

Product Name:Electric Strike

Holding Force:250KG

Power Supply:12VDC INPUT

Delay Time:N/A

Type Of The Door:Swinging 90 Degree Wooden Door Or Stainless Steel Door


Features:

1. Power to open

2. Magnetic lock, no mechanical damage

3. No delay time

4. Voltage:12VDC INPUT

5. Working current: 240mA;

6. Holding force: 250KG

7. Application for swinging 90 degree wooden door or stainless steel door


Specifications:

Lock type

Dimension

Electric lock

Lock body size: 29x17x11mm

Power to Open

Package size:


170X50X45mm

Holding Force

Opening mode

250Kg

Swinging door 90 degree

Power supply

Gross Weight

12VDC

0.4Kg

Current consumption

Environment

Working cyrrent:240mA

Operation temperature: -20°C
~ 55°C

normal atmospheric temperature+8°C

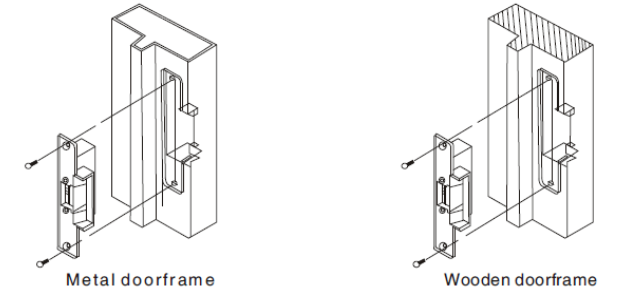

APPLICATION DOOR


Application for swinging 90 degree wooden door or stainless steel door
