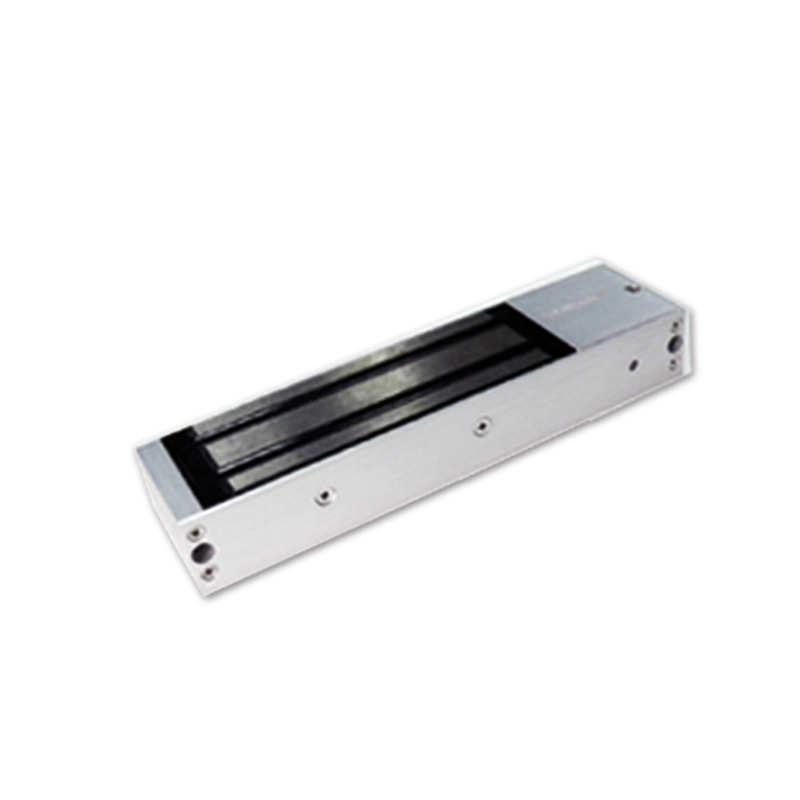

EM500A Double Door Electric Lock , electromagnetic door locks With Power To Lock , Signal , Time Del

EM500A Double Door Electric Lock , electromagnetic door locks With Power To Lock , Signal , Time Delay
Reservation Now
Detail


　


Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EM500A

Features:

1. Power to lock;

2. Magnetic lock, no mechanical damage

3. power supply:12VDC

4. Holding force: 500KG

5. With LED, Signal output( NO, NC, com) or time delay.

6. starting current:330mA standby current:380mA

7. Swinging door 90

8. Application all type of door fire exit path, no frame door can choose bracket

Specifications:

Lock type/fail safe

Dimension

Magnetic lock

Lock Dimension: 270x70x40mm

Power to lock

Package size:


290X85X75mm

Holding Force

Opening mode

500KG

Swinging door 90 degree

Power supply

Gross Weight

12VDC

4.3kg

Current consumption

Environment

Starting current:640mA

Operation temperature: -20°C
~ 55°C

standby current:640mA

Operation humidity: 20% ~ 80%

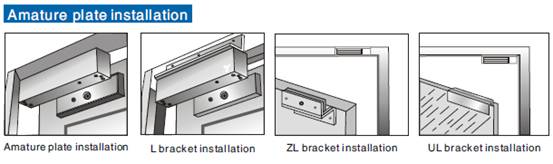

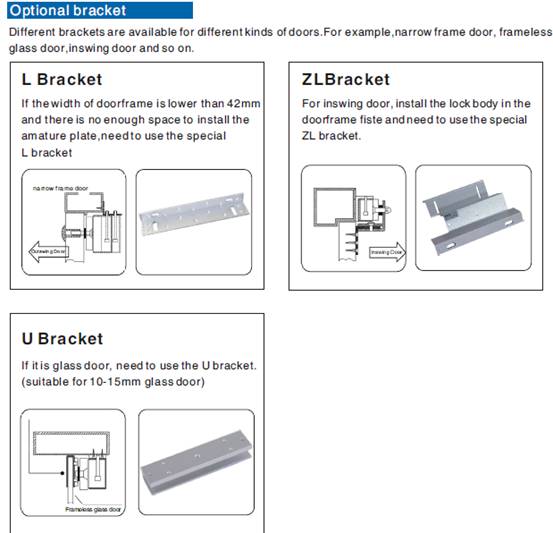

Bracket selection

APPLICATION DOOR

U type, Z type and L type (optional)

All type of door fire exit path, no frame door can choose bracket

Function Support

Customize Function

With LED, signal output (NO, NC, COM)

Time delay(3,6,9S)
