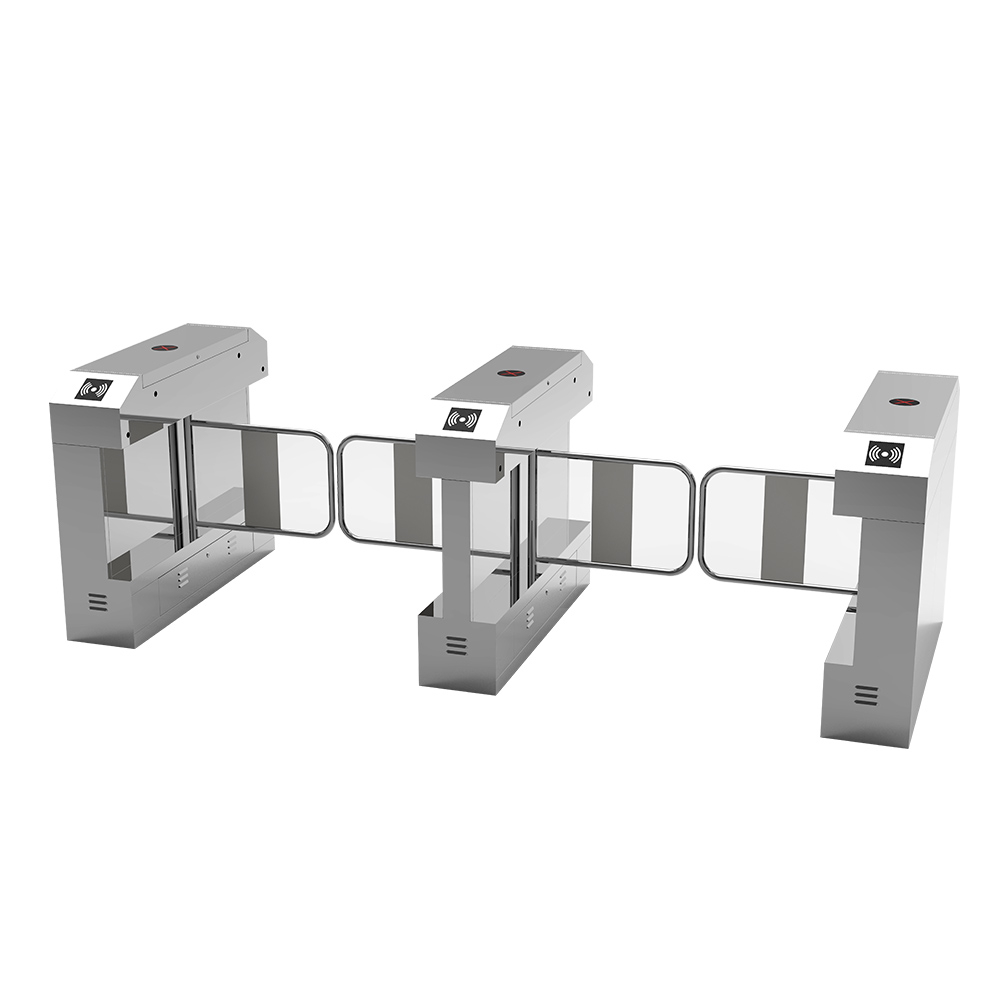

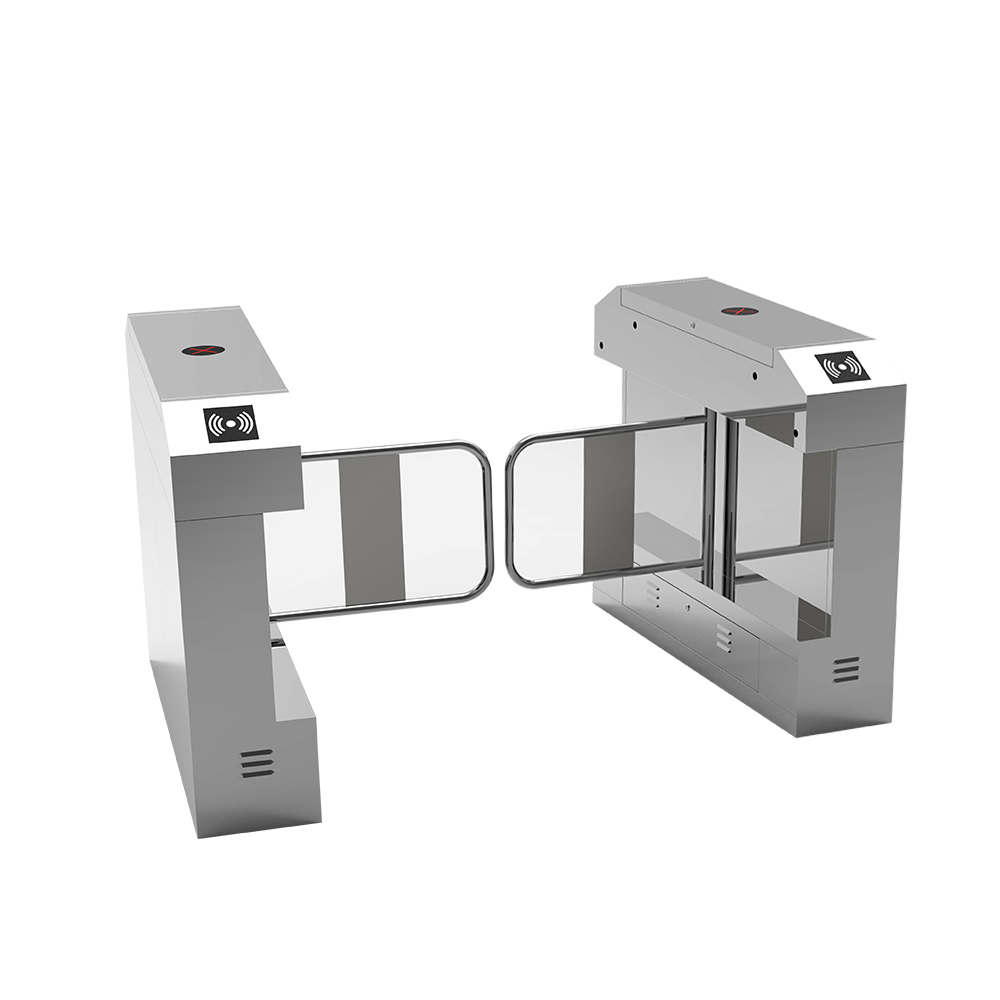

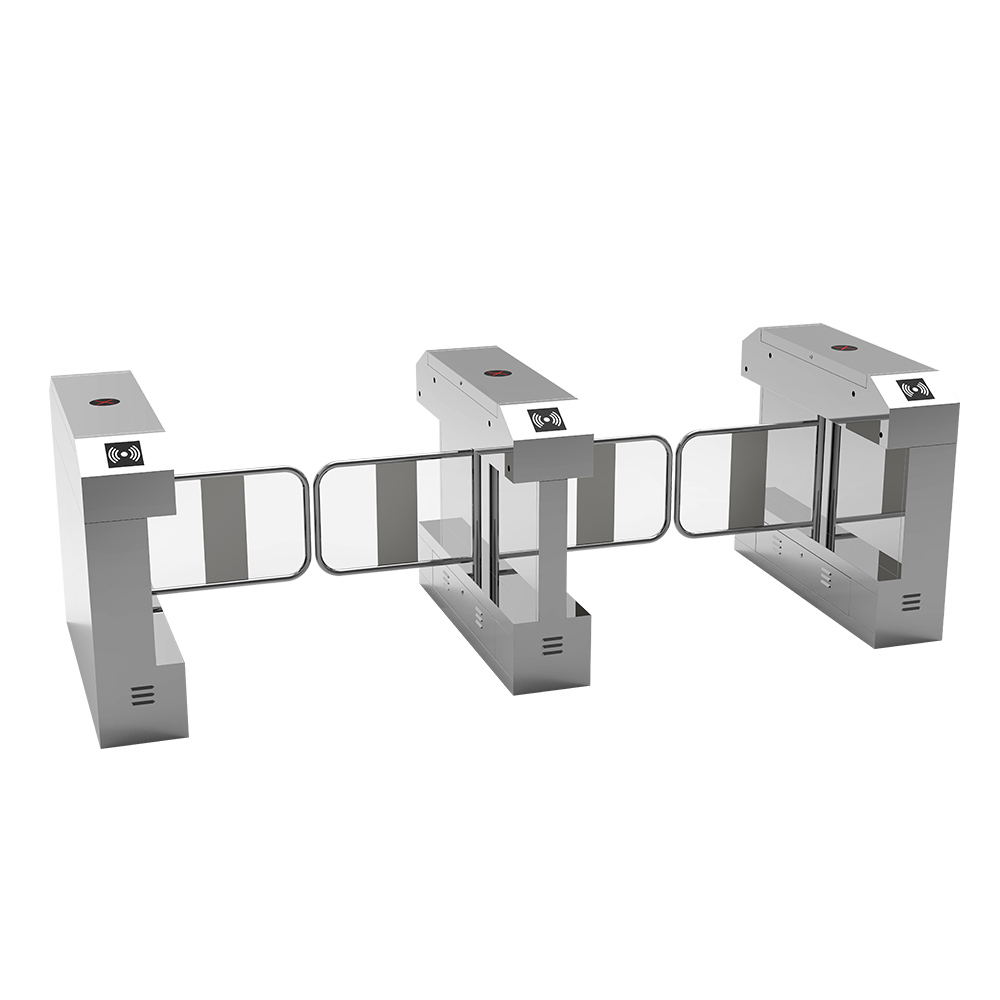

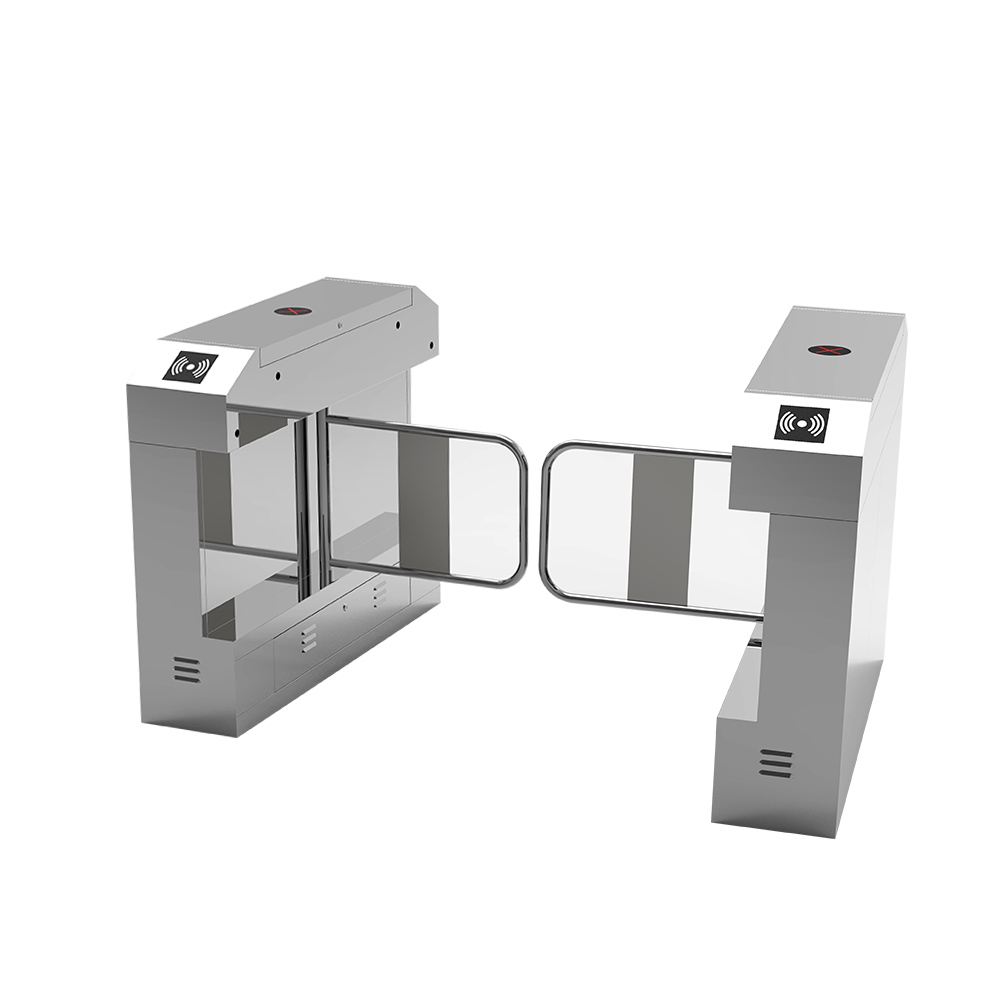

Pedestrian Automatic Entrance Gate Swing Barrier
Sensing Method: Electric
Application: Access Control System
Movement: Double Movement
Type: Swing Gate
Control Mode: Automatic
Communication Interface: TCP/IP
Transport Package: Carton Package
Barrire Movement: Swing
Origin: China
Model: ST200
Brand: GRANDING
Code: 8543709990

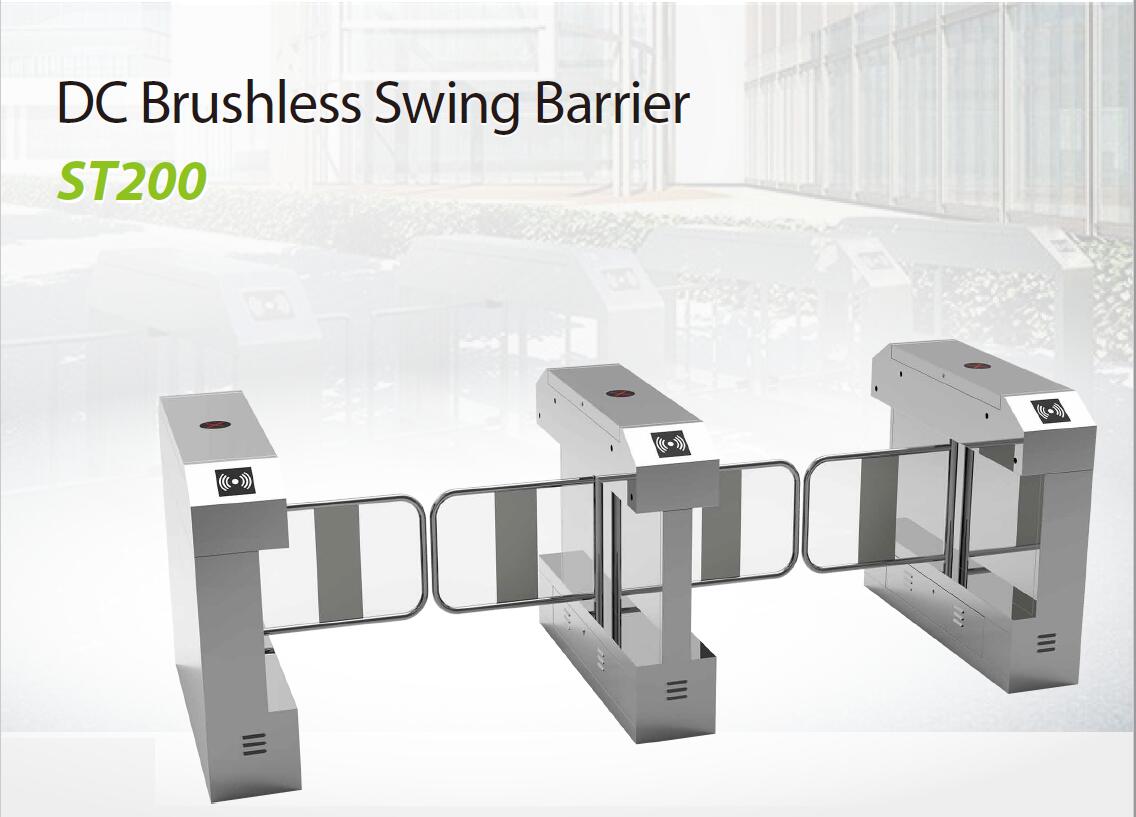

Pedestrian Automatic Entrance Gate Swing BarrierST200 Pedestrian Gate Swing Barrier Introduction

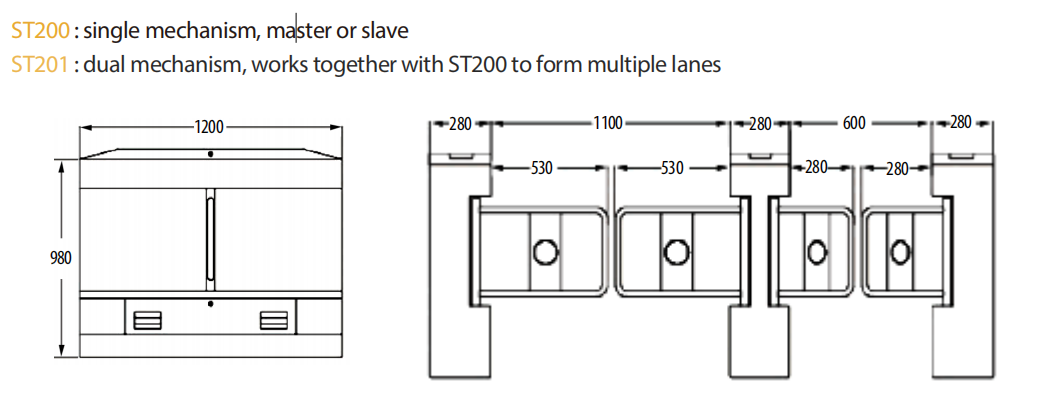

ST200 is designed main entrance for factory or residential community. The ST200 with stardard 1100mm wide lane is suitable for both people and motor bike. Using the DC brushless motor and mechanism, the device works ne even after crashed by bike. It is total water proof design on the cabinet, can be installed outdoor. Because of the modular design, the device is easy to install and maintain.

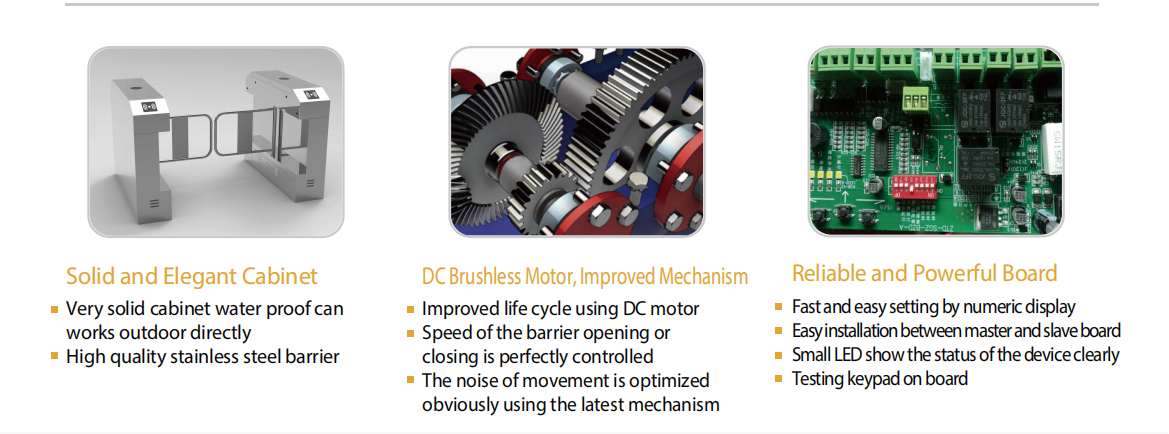

High quality and solid stainless steel cabinet , water-proof
High quality lR sensor, works fine outdoor in sunshine
DC brushless motor and mechnism, long life cycle
Automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
Input interface which are available for dry contact and switch signal connections. So customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.
Auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable.
Specification
| Model | ST200 |
| LED indicator | Y |
| Power Requirements | AC11V/220V ,50/60Hz |
| Lane Width(mm) | 550 |
| Working Enviorment Temperature | -28℃-60℃ |
| Cabinet Material | Stainless Steel |
| Lid Material | Stainless Steel |
| Barrier Material | Stainless Steel |
| Optional Function | Fingerprint/Face/Card/QR code redaer,controller |
